Home / Ruijie Reyee RG-EST450G 5GHz 867Mbps PTMP Wireless Bridge Base Station 15dBi - IP55

Ruijie Reyee RG-EST450G 5GHz PTMP Wireless Bridge Base Station

Ruijie Reyee RG-EST450G 5GHz 867Mbps PTMP Wireless Bridge Base Station 15dBi - IP55

Product Code: RG-EST450G

Highlight Features

H: 120°, V: 13°
3 x GE Ports
Support 3 Power Supply Options: 12 V DC, Passive PoE, 802.3af/at
One-Touch Pairing for PTMP Mode
Support TDMA
Support SON

Product Code: RG-EST450G

Highlight Features

H: 120°, V: 13°
3 x GE Ports
Support 3 Power Supply Options: 12 V DC, Passive PoE, 802.3af/at
One-Touch Pairing for PTMP Mode
Support TDMA
Support SON

£62.99

£75.59 (inc. VAT)

Description

Ruijie Reyee RG-EST450G Outdoor PTMP Wireless Bridge Base Station

The Ruijie Reyee RG-EST450G is a professional outdoor point-to-multipoint wireless bridge base station designed for transferring network data between locations where installing conventional network cabling would be difficult, expensive or impractical.

It is particularly suitable for CCTV backhaul, farms, industrial sites, campuses, car parks, warehouses, remote buildings and other installations where multiple remote network locations need to communicate back to a central point.

The RG-EST450G combines a 5GHz 2x2 MIMO bridge radio with a built-in 15dBi directional antenna, 120° horizontal coverage, three Gigabit Ethernet ports, TDMA, one-touch pairing and cloud-based management capabilities.

This listing is for one RG-EST450G base-station unit. It is not a complete two-device wireless bridge kit. Compatible remote CPE bridge equipment must be selected separately according to the required topology and distance.

Point-to-Multipoint Base Station

The RG-EST450G is designed primarily as the central base station within a point-to-multipoint wireless bridge installation.

Its wide 120° horizontal antenna coverage allows compatible remote bridge units to be positioned across a broad area while communicating with the central RG-EST450G.

This type of design can be useful where several CCTV cameras, remote buildings or network locations need to transmit data back to one main site.

The unit is sold individually and customers should not assume that purchasing one RG-EST450G creates a complete wireless link.

5GHz 2x2 MIMO Bridge Radio

The main data bridge operates on the 5GHz frequency band using a 2x2 MIMO dual-stream radio.

The wireless platform supports IEEE 802.11a, 802.11n and 802.11ac standards on 5GHz.

The maximum published 5GHz wireless data rate is 867Mbps.

This 867Mbps figure is the maximum wireless PHY or link rate rather than guaranteed application throughput. Real network performance is lower and depends on distance, channel width, interference, alignment, connected CPE, regulatory settings and environmental conditions.

Separate 2.4GHz Management Radio

The RG-EST450G also includes a separate 2.4GHz single-stream radio.

The 2.4GHz radio supports IEEE 802.11b/g/n with a maximum published wireless rate of 150Mbps and is used primarily for bridge management.

This dual-radio arrangement separates management connectivity from the main 5GHz bridge link.

15dBi Built-In 5GHz Antenna

The RG-EST450G has an integrated 5GHz directional antenna with a specified gain of 15dBi.

The antenna provides approximately 120° horizontal coverage and 13° vertical coverage.

The wide horizontal beam makes the product particularly suitable as the central station in a point-to-multipoint deployment where compatible CPE units are positioned across different locations within the antenna's intended coverage area.

2dBi 2.4GHz Management Antenna

The 2.4GHz management radio uses an integrated antenna with a specified gain of 2dBi.

The two radio systems perform different functions and the 2.4GHz management rate should not be confused with the 5GHz bridge data rate.

Long-Distance Wireless Bridging

The manufacturer's technical documentation identifies a working distance of up to 5km under appropriate deployment conditions.

The current manufacturer application table provides reference performance for the RG-EST450G when paired with an RG-EST350G CPE.

Approximately 200Mbps bridging throughput at 1km
Approximately 130Mbps bridging throughput at 3km
Approximately 80Mbps bridging throughput at 5km

These are manufacturer reference

Attributes

Brand:

Ruijie/Reyee

Product Code:

RG-EST450G

Reviews

Customer reviews

No reviews left yet

Write a review

No reviews have been left for this product, be the first to leave a review

Frequently Asked Questions

What is the RG-EST450G?

The RG-EST450G is an outdoor point-to-multipoint wireless bridge base station. It is designed to connect compatible remote wireless bridge or CPE devices back to a central network location.

Is this listing for one unit or a pair?

This product is sold as one RG-EST450G unit. It is not a complete two-device wireless bridge kit.

Can I create a wireless link using only one RG-EST450G?

No. A compatible remote CPE or wireless bridge is also required at the remote location.

Is the RG-EST450G a base station?

Yes. The current product positioning identifies the RG-EST450G as the PTMP base-station device.

Can it connect to multiple remote bridges?

Yes. It is designed for point-to-multipoint applications with compatible remote bridge equipment.

What is the maximum wireless rate?

The maximum published 5GHz wireless link rate is 867Mbps. This is a theoretical wireless PHY rate and should not be confused with guaranteed application throughput.

What actual bridging speed can I expect?

The manufacturer's current reference table shows approximately 200Mbps at 1km, 130Mbps at 3km and 80Mbps at 5km when paired with an RG-EST350G under its stated test conditions. Real-world performance can vary substantially.

How far can the RG-EST450G work?

The manufacturer's documentation gives a reference working distance of up to 5km when used with suitable compatible equipment and installation conditions. Clear line of sight and correct alignment are important.

Is 5km guaranteed?

No. Maximum range and throughput depend on line of sight, interference, antenna alignment, mounting height, connected equipment, channel configuration and environmental conditions.

What frequency does it use for bridging?

The main bridge data link operates on 5GHz.

What is the 2.4GHz radio used for?

The 2.4GHz single-stream radio is primarily used for device management.

What wireless standards are supported?

The 5GHz radio supports IEEE 802.11a/n/ac, while the 2.4GHz radio supports IEEE 802.11b/g/n.

Does it use MIMO?

Yes. The 5GHz bridge radio uses 2 x 2 MIMO with two spatial streams.

What is the antenna gain?

The integrated 5GHz directional antenna is rated at 15dBi. The 2.4GHz management antenna is rated at 2dBi.

What is the antenna coverage?

The integrated bridge antenna provides approximately 120° horizontal and 13° vertical coverage.

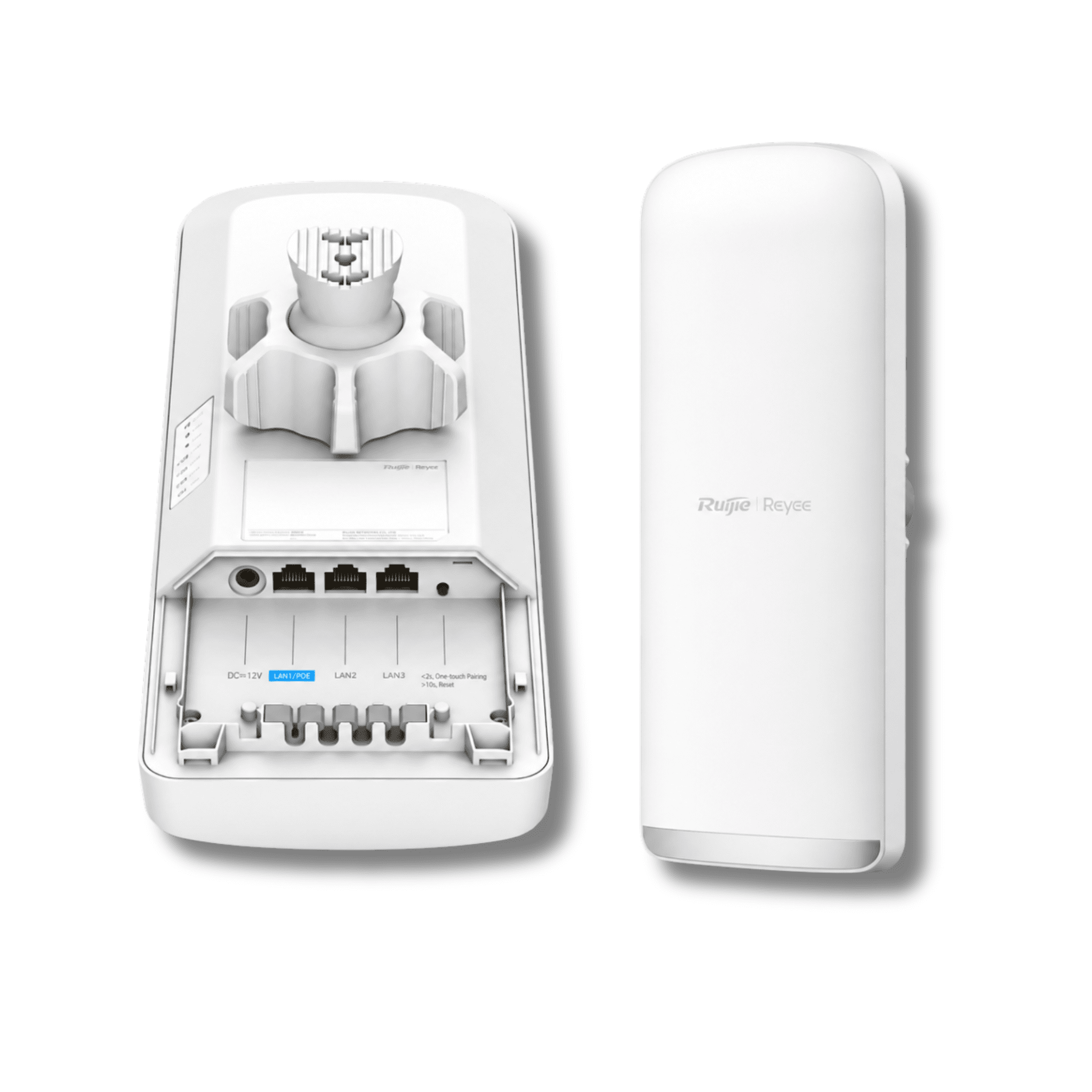

Does it have Gigabit Ethernet?

Yes. It has three 10/100/1000BASE-T Gigabit Ethernet ports.

Does the RG-EST450G support PoE?

Yes. It supports 24V passive PoE and IEEE 802.3af/at PoE power input.

Can it also be powered by DC?

Yes. A 12V DC power input is supported.

What is the maximum power consumption?

The manufacturer's installation specification states less than 12W.

Does it support one-touch pairing?

Yes. One-touch pairing is supported for compatible PTMP deployments.

Does it support TDMA?

Yes. TDMA is supported.

Does it support SON?

Yes. Ruijie Reyee SON self-organising network functionality is supported.

Does it have a spectrum scanner?

Yes. Spectrum scanning is supported to assist with interference analysis and link optimisation.

Does it have an alignment tool?

Yes. The supported management platform includes an alignment tool to assist bridge installation.

Can I test the bridge speed?

Yes. Bridge speed testing is supported.

Does it support SNMP?

Yes. SNMPv1, SNMPv2c and SNMPv3 are supported.

Is it weather resistant?

Yes. The RG-EST450G carries an IP55 ingress-protection rating.

Can it be submerged in water?

No. IP55 does not provide protection for product submersion.

What is the operating temperature?

The specified operating range is -30°C to +65°C.

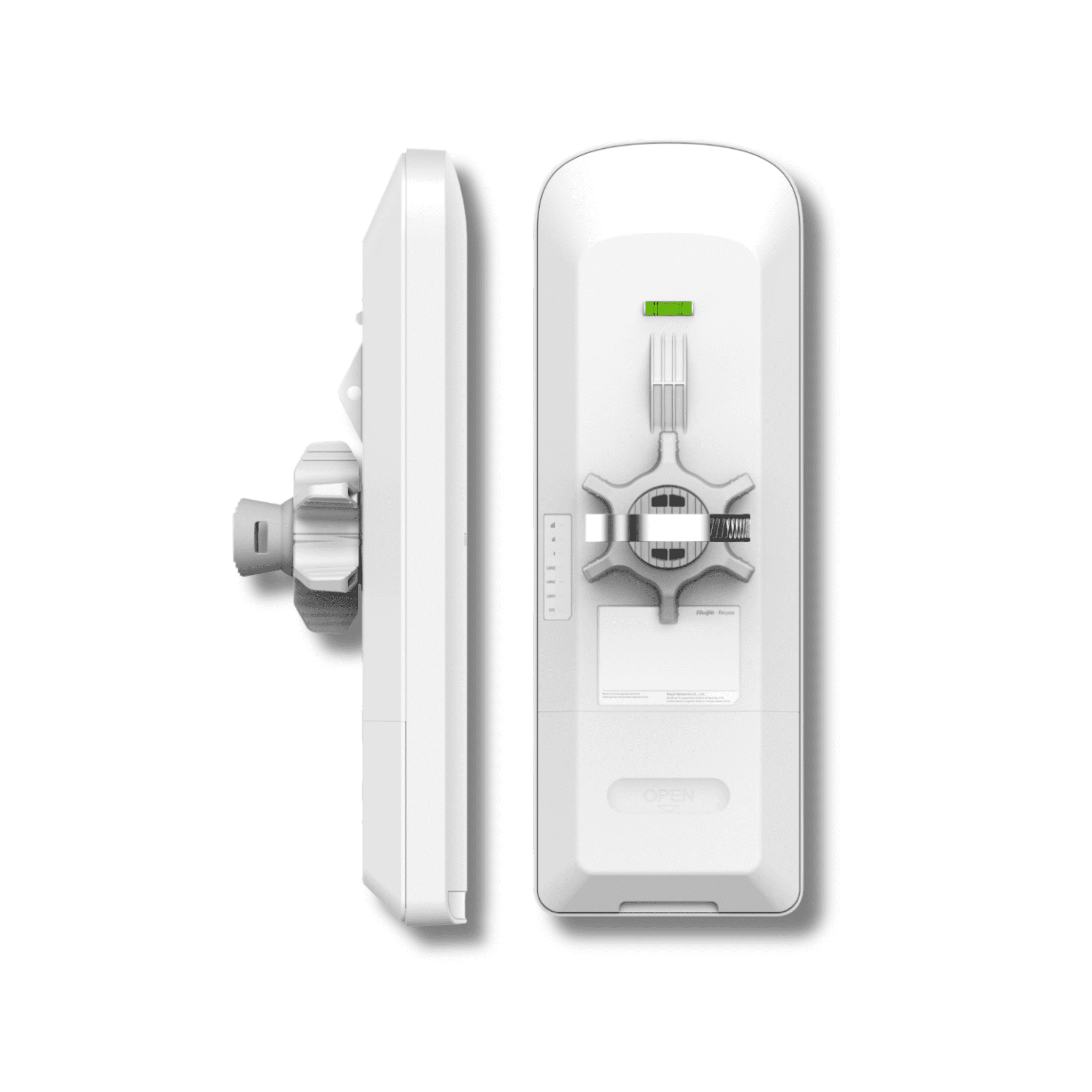

How is the RG-EST450G mounted?

Wall and pole mounting are supported.

What are the dimensions?

The main unit measures approximately 124 x 48 x 355mm excluding its mounting bracket.

How much does it weigh?

The main device weighs approximately 0.83kg without packaging.

Can I use it for CCTV?

Yes. Wireless CCTV backhaul is one of the intended applications, provided the link is correctly designed for the required camera bandwidth.

How many CCTV cameras can it carry?

There is no single guaranteed camera quantity for every installation. Camera capacity depends on each camera's actual bitrate, required recording quality and the achieved wireless-link throughput.

What is the EAN?

The exact-model distributor EAN is 6976915002641.

Is this supplied throughout the UK?

Yes, subject to live stock and normal delivery terms. Supply is available throughout England, Scotland, Wales and Northern Ireland.
