Pyronix LCDRKP-WE Wireless LCD Keypad for Enforcer V11 & EURO 76 - Grade 2

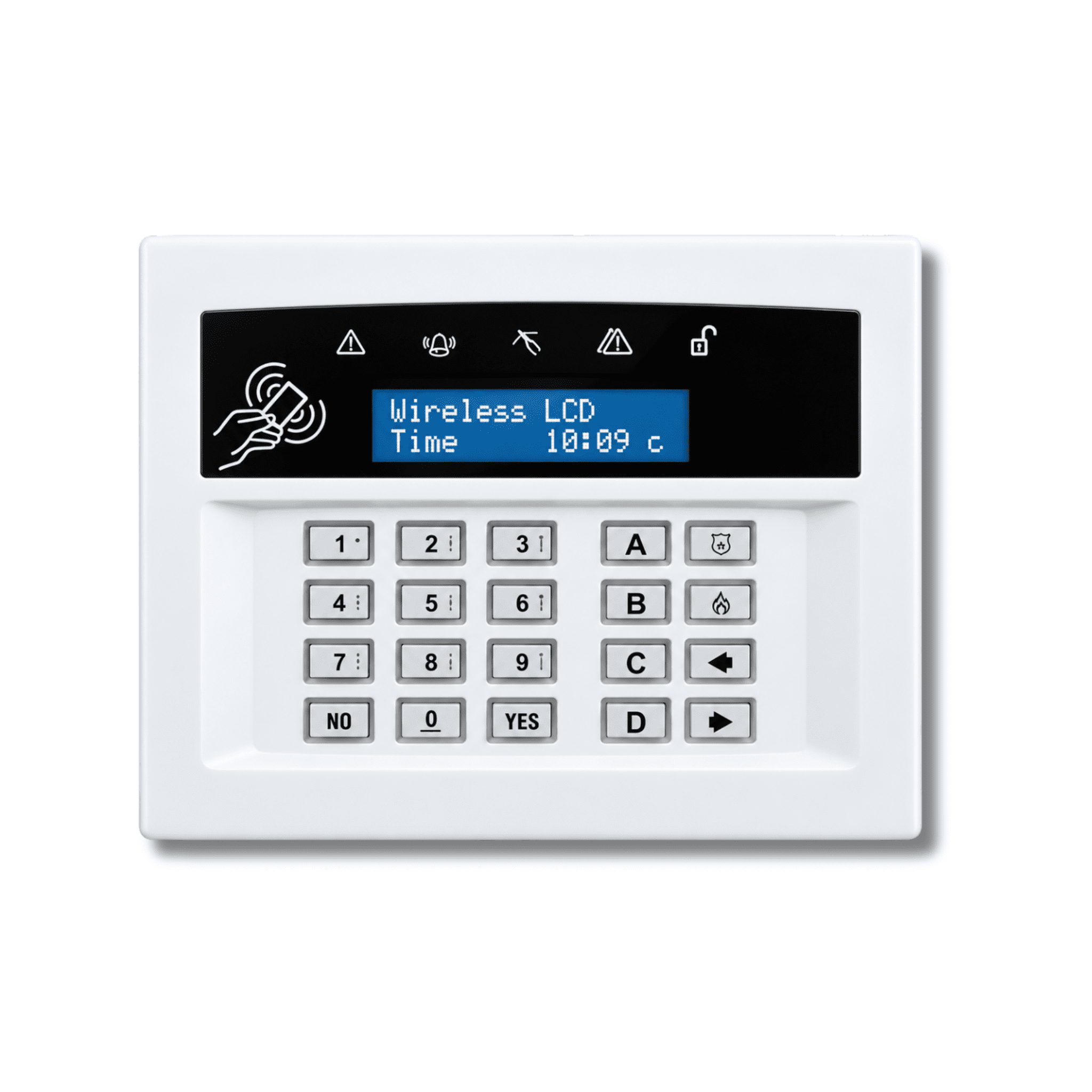

Pyronix LCDRKP-WE Wireless LCD Keypad

The Pyronix LCDRKP-WE is a professional wireless LCD keypad designed to provide convenient control and programming of compatible Pyronix intruder alarm systems without requiring a wired keypad connection. It combines a clear full-text LCD display, responsive controls, secure encrypted wireless communication and battery-powered operation in a clean white enclosure suitable for residential and commercial security installations.

The keypad is designed for compatible Pyronix Enforcer V11 systems and EURO 76 installations using the appropriate wireless ZEM. It can be used for everyday alarm operation as well as system management and programming, providing users and installers with a flexible additional control point without the disruption normally associated with installing keypad cabling.

Clear Full-Text LCD Display

Unlike a basic alarm keypad that relies primarily on status LEDs, the LCDRKP-WE provides a clear full-text LCD display that can show detailed system information directly to the user.

The display is backlit to improve visibility in lower-light environments and helps users navigate alarm-system menus, understand system status and access supported functions more easily.

This makes the keypad suitable for locations such as entrance halls, offices, reception areas, bedrooms, internal security points and other positions where convenient access to the alarm system is required.

Full Alarm System Control

The LCDRKP-WE is designed for more than simple arming and disarming. When connected to a compatible Pyronix system, the keypad can provide access to supported system-management and programming functions.

Typical supported functions include:

• Checking alarm-system status
• Arming the security system
• Disarming the security system
• Navigating system menus
• Managing supported system settings
• Accessing system programming functions
• Viewing system information and updates on the LCD screen

The exact functions available depend on the connected Pyronix control panel, system configuration, user permissions and firmware version.

Wireless Installation

Because the LCDRKP-WE communicates wirelessly with compatible Pyronix equipment, there is no requirement to install a conventional keypad data cable between the keypad and control panel.

This can simplify installation in properties where adding new cables would be difficult, disruptive or undesirable. It is particularly useful when upgrading an existing alarm installation or adding an additional keypad in another suitable location.

The wireless design also provides greater flexibility when selecting the keypad location, subject to suitable radio signal strength and the installation requirements of the Pyronix system.

Secure 868MHz Wireless Communication

The LCDRKP-WE uses Pyronix wireless communication operating at 868MHz.

Pyronix specifies a fully encrypted rolling-code transmission method using an 868MHz FM narrow-band transceiver. This provides secure wireless communication between the keypad and the compatible alarm system.

The manufacturer specifies a wireless transmission range of approximately 300m in free-space conditions.

This figure represents an unobstructed maximum planning distance. Actual range inside a property can be reduced by walls, floors, metalwork, electrical equipment, building construction and other environmental conditions.

Compatible with Pyronix Enforcer V11

The wireless LCD keypad is designed for compatible Pyronix Enforcer V11 alarm systems.

Pyronix's current technical documentation specifies Enforcer firmware V11.40f for LCDRKP-WE compatibility.

Installers upgrading an existing Enforcer system should therefore check the current control-panel firmware before purchasing or enrolling the keypad.

Compatible with EURO 76 Systems

The LCDRKP-WE can also be used with compatible Pyronix EURO systems where the appropriate wireless expansion hardware and firmware are installed.

Pyronix currently specifies EURO firmware V11.00h together with EURO-ZEM32-WE firmware V5.05.

This compatibility requirement is important because the LCDRKP-WE should not be assumed to operate with every previous EURO or Enforcer system simply because the products share the Pyronix brand.

Battery Powered

The keypad is powered by four 3V CR123A batteries.

Battery operation allows the keypad to remain completely wireless without requiring a local wired power connection under its standard installation configuration.

Pyronix specifies an expected battery life of up to approximately 2 years under normal operating conditions.

Actual battery life can vary according to frequency of use, radio conditions, display activity, operating temperature and system configuration.

Low Battery Monitoring

Pyronix specifies a low-battery threshold of approximately 2.4V ±5% at 25°C.

This allows the compatible security system to identify declining battery condition so maintenance can be carried out before the batteries are completely exhausted.

Front and Rear Tamper Protection

The LCDRKP-WE incorporates front and rear tamper switches.

Tamper protection is an important part of a professional alarm keypad because it allows the security system to monitor supported attempts to open the keypad enclosure or remove the unit from its installed position.

Amber, Red and Green LED Indication

The keypad provides amber, red and green LED indication in addition to the LCD display.

These indicators support clear visual feedback alongside the detailed information shown on the screen.

Grade 2 Security Product

Pyronix identifies the LCDRKP-WE as a Security Grade 2 product.

The manufacturer's current declaration of conformity also identifies Environmental Class II and references the applicable EN 50131 intrusion and hold-up alarm standards.

The security grade of an individual product does not automatically determine the grade of the complete alarm installation. The complete system must be designed, installed and configured to meet the required standard.

Durable ABS Enclosure

The keypad uses a 3mm ABS enclosure finished in white as standard.

Its compact design measures approximately 160mm wide, 125mm high and 36mm deep, with a specified weight of approximately 375g.

The clean white finish is suitable for modern residential and commercial interiors while keeping the keypad clearly accessible for normal alarm operation.

Optional Alternative Casing Finishes

Pyronix also lists compatible replacement plastic casing accessories for the LCD keypad family in additional finishes including chrome, black chrome, black and gold.

These are optional accessories and should not be assumed to be included with the standard white LCDRKP-WE unless specifically stated on the product page or order.

Operating Environment

Pyronix specifies an operating temperature range of -10°C to +40°C and the same -10°C to +40°C range for storage.

The LCDRKP-WE is intended for appropriate indoor alarm installations and should not be treated as an outdoor weatherproof keypad unless additional manufacturer-approved protection is specifically provided.

Pyronix LCDRKP-WE Product Facts

Ideal for Additional Alarm Control Points

The LCDRKP-WE is particularly useful when an additional alarm-system control point is needed without installing a new wired keypad connection.

It can be used in residential properties, offices, commercial premises and other compatible Pyronix installations where convenient access to alarm-system controls is required.

Its combination of a full-text LCD screen, system programming capability, secure wireless communication and battery operation makes it a practical option for both new installations and compatible system upgrades.
