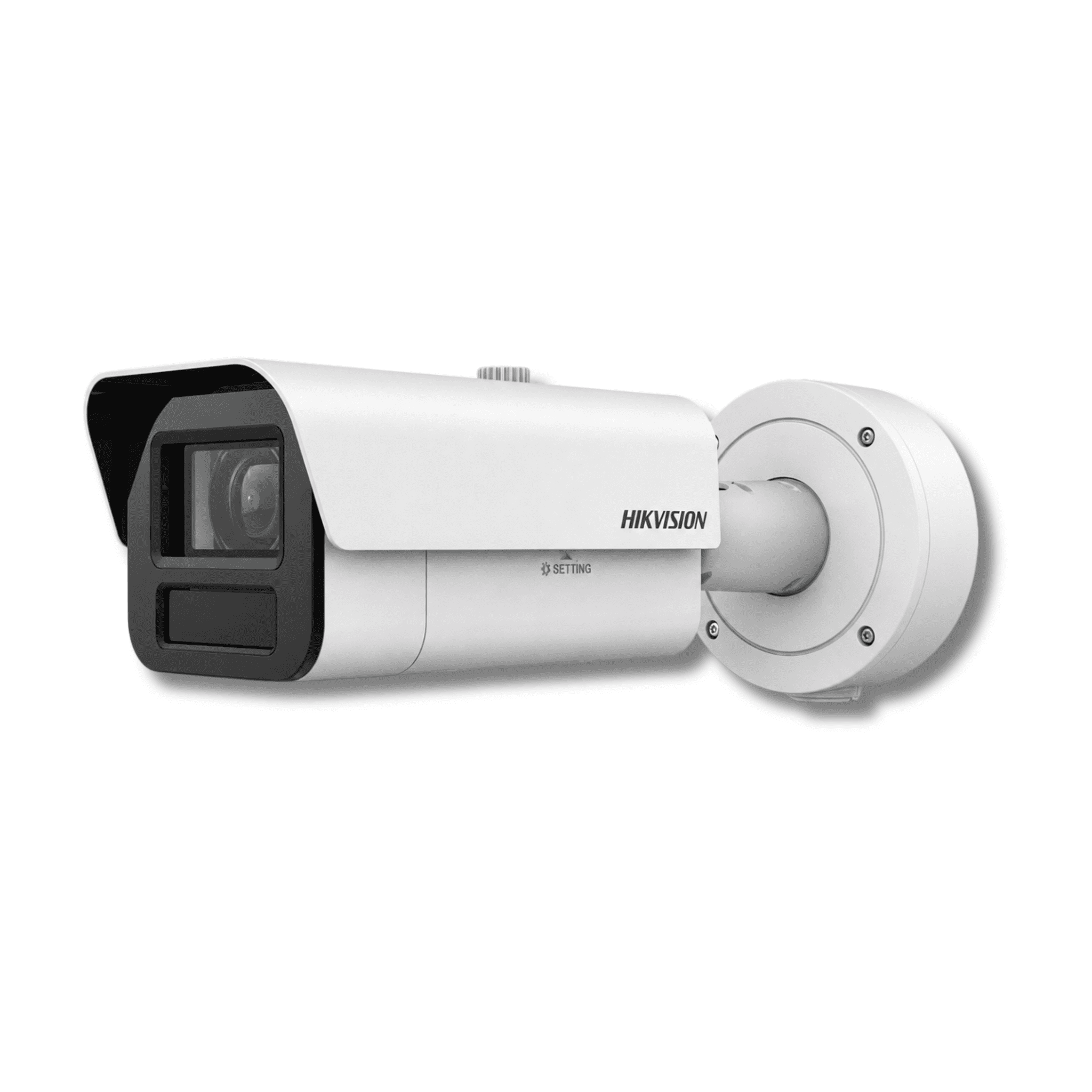

Hikvision iDS-2CD7A45G0/P-IZHSY 4MP 25x DeepinView ANPR Bullet Camera

The Hikvision iDS-2CD7A45G0/P-IZHSY(4.7-118mm) is a professional long-range 4MP DeepinView ANPR bullet network camera designed for vehicle entrances, checkpoints, car parks, commercial sites, logistics facilities, industrial premises and other applications where licence-plate capture and detailed surveillance are required over substantial distances.

This exact model combines a 4.7-118mm motorised varifocal P-Iris lens with 25x optical zoom, 4MP imaging, 140dB Wide Dynamic Range, Smart IR illumination up to 200m, embedded licence-plate recognition, vehicle attribute analysis, parking-management functions, human and vehicle perimeter protection, electronic image stabilisation, extensive alarm interfaces and professional environmental protection.

Exact iDS-2CD7A45G0/P-IZHSY 4.7-118mm Variant

This product listing is specifically for the Hikvision iDS-2CD7A45G0/P-IZHSY(4.7-118mm).

Hikvision officially lists the long-range /P version with the 4.7-118mm lens. This should remain consistent across the EKM Product Name, description, specification data, Merchant Center feed, FAQs, image alt text and structured product information.

The product must not be confused with the newer iDS-2CD7A46G0/P models using 2.8-12mm or 8-32mm lenses, or with the non-/P iDS-2CD7A45G0 surveillance version. The /P designation is particularly important because this model is designed around ANPR, vehicle analysis and parking-management applications.

4MP High-Resolution Surveillance

The camera uses a 1/2.5-inch Progressive Scan CMOS sensor and supports a maximum resolution of 2688 x 1520, delivering detailed 4MP surveillance images.

For UK 50Hz operation, the main stream supports up to 25fps at the full 2688 x 1520 resolution. Higher frame rates of up to 50fps are available at supported lower resolutions including 2560 x 1440 and 1920 x 1080.

This gives installers flexibility between maximum image resolution and higher-frame-rate applications depending on the required vehicle speed, surveillance area and recorder configuration.

25x Optical Zoom with 4.7-118mm Motorised Lens

One of the most important features of the iDS-2CD7A45G0/P-IZHSY is its ultra-long 4.7-118mm motorised varifocal lens.

The lens provides approximately 25x optical zoom, allowing installers to cover targets considerably further away than would normally be practical with conventional 2.8mm, 4mm or standard 8-32mm CCTV lenses.

• Focal length: 4.7-118mm
• Optical zoom: 25x
• Horizontal field of view: approximately 58° to 2.8°
• Vertical field of view: approximately 32.3° to 1.6°
• Diagonal field of view: approximately 63° to 3°
• Aperture: F1.6 to F3.8
• Iris type: P-Iris
• Focus: Auto / Semi-Auto / Manual

At the wide end, the camera provides useful scene coverage around a vehicle entrance or monitored area. At the telephoto end, the extremely narrow field of view allows the camera to concentrate image detail on distant vehicles, number plates or defined surveillance zones.

Long-Range DORI Planning

The long telephoto lens gives this model unusually high standardised DORI planning distances.

At the wide position:

• Detection: approximately 106m
• Observation: approximately 42.1m
• Recognition: approximately 21.2m
• Identification: approximately 10.6m

At maximum telephoto:

• Detection: approximately 2,200m
• Observation: approximately 873m
• Recognition: approximately 440m
• Identification: approximately 220m

These DORI figures are standardised planning references rather than guaranteed real-world identification distances. Actual usable performance depends heavily on installation height, atmospheric conditions, lighting, camera alignment, target movement, compression settings and lens positioning.

Smart IR Night Vision up to 200m

The Hikvision iDS-2CD7A45G0/P-IZHSY uses 850nm infrared illumination with Smart Supplement Light control.

Hikvision specifies an infrared range of up to 200m, making this camera particularly well suited to long-range night surveillance, vehicle approaches, site perimeters and entrances where conventional 30m or 50m infrared cameras would not provide enough reach.

Minimum illumination is officially specified at 0.009 Lux in colour at F1.6 with AGC enabled and 0.0018 Lux in black-and-white operation, with 0 Lux possible when the built-in infrared illumination is active.

140dB Wide Dynamic Range

The camera provides powerful 140dB Wide Dynamic Range for difficult lighting conditions.

This can be particularly important for ANPR and vehicle-monitoring installations where headlights, reflective number plates, sunlight, shadows and artificial lighting can create extreme contrast within the same image.

Additional image-enhancement functions include BLC, HLC, 3D Digital Noise Reduction, distortion correction and defog.

Built-In Gyroscope and Electronic Image Stabilisation

The camera incorporates a built-in gyroscope to improve Electronic Image Stabilisation performance.

This is valuable for a long-range 25x optical zoom camera because even small physical movements or vibration can become much more noticeable when the lens is operating near maximum telephoto.

EIS can therefore help maintain a more stable image where the camera is exposed to wind, vibration or other environmental movement.

Professional ANPR and Licence-Plate Recognition

The /P version is designed specifically for ANPR and vehicle-monitoring applications.

The embedded deep-learning engine supports licence-plate recognition for vehicles and, in supported checkpoint scenarios, motorcycle licence plates.

The camera supports licence-plate recognition across more than 124 countries and regions within Europe, the Middle East, Asia-Pacific and Africa.

Under Hikvision's recommended installation and lighting conditions, the published performance includes:

• Licence-plate recognition rate: at least 98%
• Vehicle capture rate: at least 99%
• Driving-direction recognition accuracy: at least 98%

These performance figures depend on correct installation, camera angle, plate size within the image, shutter configuration, lighting, vehicle speed and other environmental factors and should not be treated as unconditional guarantees.

Vehicle Capture up to 120km/h

For correctly designed checkpoint installations, Hikvision specifies vehicle capture speeds of up to 120km/h when the camera is installed facing the approaching vehicle.

For supported side-installation scenarios, the specified capture speed is up to 80km/h.

This makes the camera suitable for professional access roads, entrances, checkpoints and vehicle-monitoring projects where traffic may be moving faster than in a conventional car park.

Vehicle Attribute Detection

DeepinView vehicle analysis extends beyond simply reading the number plate.

Supported vehicle attributes include:

• Vehicle type
• Vehicle colour
• Vehicle brand
• Driving direction

The camera can also perform vehicle and non-vehicle counting, allowing it to support broader traffic and site-monitoring applications.

Allowlist and Blocklist Management

The camera supports embedded licence-plate allowlist and blocklist functions with capacity for up to 10,000 records.

This allows recognised registration numbers to be categorised and used as part of compatible vehicle-access or monitoring workflows.

For example, a recognised allowlisted plate could form part of a permitted vehicle-entry workflow when integrated with compatible access-control equipment, while blocklisted plates can be treated as higher-priority events.

Parking Management Functions

The iDS-2CD7A45G0/P-IZHSY also provides dedicated parking-management analytics.

In distant-view mode, the camera supports:

• Status detection for up to 40 parking spaces
• Parking-duration detection
• Vacant parking-space alarms

In close-view mode, the camera supports:

• Status detection for up to 4 parking spaces
• Licence-plate recognition
• Parking-timeout alarms
• Vacant parking-space alarms

This makes the camera useful not only for entrance ANPR but also for selected intelligent car-park management applications.

Human and Vehicle Perimeter Protection

The camera also supports perimeter-protection analytics including:

• Line crossing detection
• Intrusion detection
• Region entrance detection
• Region exiting detection

Supported events can trigger according to specified human and vehicle target types, helping reduce irrelevant events caused by unrelated scene movement.

Five Video Streams and H.265+

The camera supports up to five video streams for flexible integration with different recording, viewing and analytics requirements.

Main-stream compression supports H.265+, H.265, H.264+ and H.264. Efficient compression can significantly reduce storage and bandwidth requirements compared with less efficient video formats.

Up to 20 simultaneous live-view channels and up to 32 users are supported, with administrator, operator and user access levels.

External Audio Input and Output

The iDS-2CD7A45G0/P-IZHSY provides professional line-level audio interfaces.

• 1 x line-level audio input
• 1 x line-level audio output

These use 3.5mm connectors and allow compatible external microphones, speakers or other audio equipment to be integrated where required.

No built-in microphone or built-in speaker is specified for this exact model, so those features should not be advertised as integrated hardware.

Two Alarm Inputs and Two Alarm Outputs

The camera includes two alarm inputs and two alarm outputs for external security-system integration.

The alarm outputs support a maximum load of 24V DC at 1A.

This provides professional installers with options for integration with barriers, alarm equipment, sensors or other compatible systems.

1TB microSD Storage

A built-in memory-card slot supports microSD, microSDHC and microSDXC cards up to an officially specified maximum capacity of 1TB.

When used with compatible high-end Hikvision memory cards, health monitoring and memory-card encryption are supported.

NAS storage using NFS and SMB/CIFS is also supported together with Auto Network Replenishment functionality.

Gigabit Ethernet and ONVIF

The camera provides a self-adaptive 10/100/1000Mbps Gigabit RJ45 Ethernet interface, making it suitable for professional high-bandwidth network environments.

Current interface support includes ONVIF Profile S, Profile G, Profile T and Profile M together with Hikvision ISAPI, SDK and ISUP.

Compatible Hikvision management platforms include Hik-Connect, iVMS-4200 and HikCentral.

RS-485 and Auxiliary 12V Output on the -Y Version

The exact iDS-2CD7A45G0/P-IZHSY model includes additional interfaces associated with the -Y version.

• 1 x RS-485 half-duplex interface
• Supported protocols include Hikvision, Pelco-P and Pelco-D
• 12V DC auxiliary power output
• Maximum auxiliary output current: 100mA

These interfaces provide additional flexibility for compatible professional accessories and integration equipment.

12V DC, 24V AC or IEEE 802.3at PoE+

The -Y model supports three primary power options.

• 12V DC ±20% - maximum 20.7W
• 24V AC ±20% - maximum 19.9W
• IEEE 802.3at Type 2 Class 4 PoE - maximum 19.5W

The connected PoE switch, NVR PoE port or injector must therefore provide IEEE 802.3at PoE+ rather than assuming standard lower-power IEEE 802.3af is sufficient.

Built-In Heater and De-Icing

The iDS-2CD7A45G0/P-IZHSY contains a built-in heater for the front viewing window and supports de-icing functionality.

This is designed to help maintain image quality in low-temperature, snowy and icy environments where conventional camera windows may become obstructed.

IP67, IK10 and NEMA 4X Protection

The camera uses an aluminium-alloy body and is designed for demanding professional outdoor environments.

• IP67 water and dust protection
• IK10 vandal-impact protection
• NEMA 4X anti-corrosion protection on the -Y version

NEMA 4X provides an important additional level of environmental and corrosion protection, but installation conditions and mounting accessories must still be appropriate for the specific site.

Operating Environment

The camera is specified for operation from -40°C to +60°C with relative humidity of 95% or less, non-condensing.

Combined with the heater, de-icing function, aluminium housing, IP67 rating and IK10 protection, this makes the camera suitable for demanding external surveillance when correctly installed.

Hikvision iDS-2CD7A45G0/P-IZHSY Product Facts

Ideal Applications

The Hikvision iDS-2CD7A45G0/P-IZHSY is particularly suitable for professional ANPR installations including gated entrances, private roads, logistics centres, industrial sites, warehouse entrances, business parks, commercial car parks, vehicle checkpoints and other locations requiring number-plate recognition at significant distances.

The combination of 25x optical zoom, up to 200m IR, 140dB WDR and integrated vehicle analytics also makes the camera useful where a conventional short-range ANPR camera cannot provide enough optical reach.
