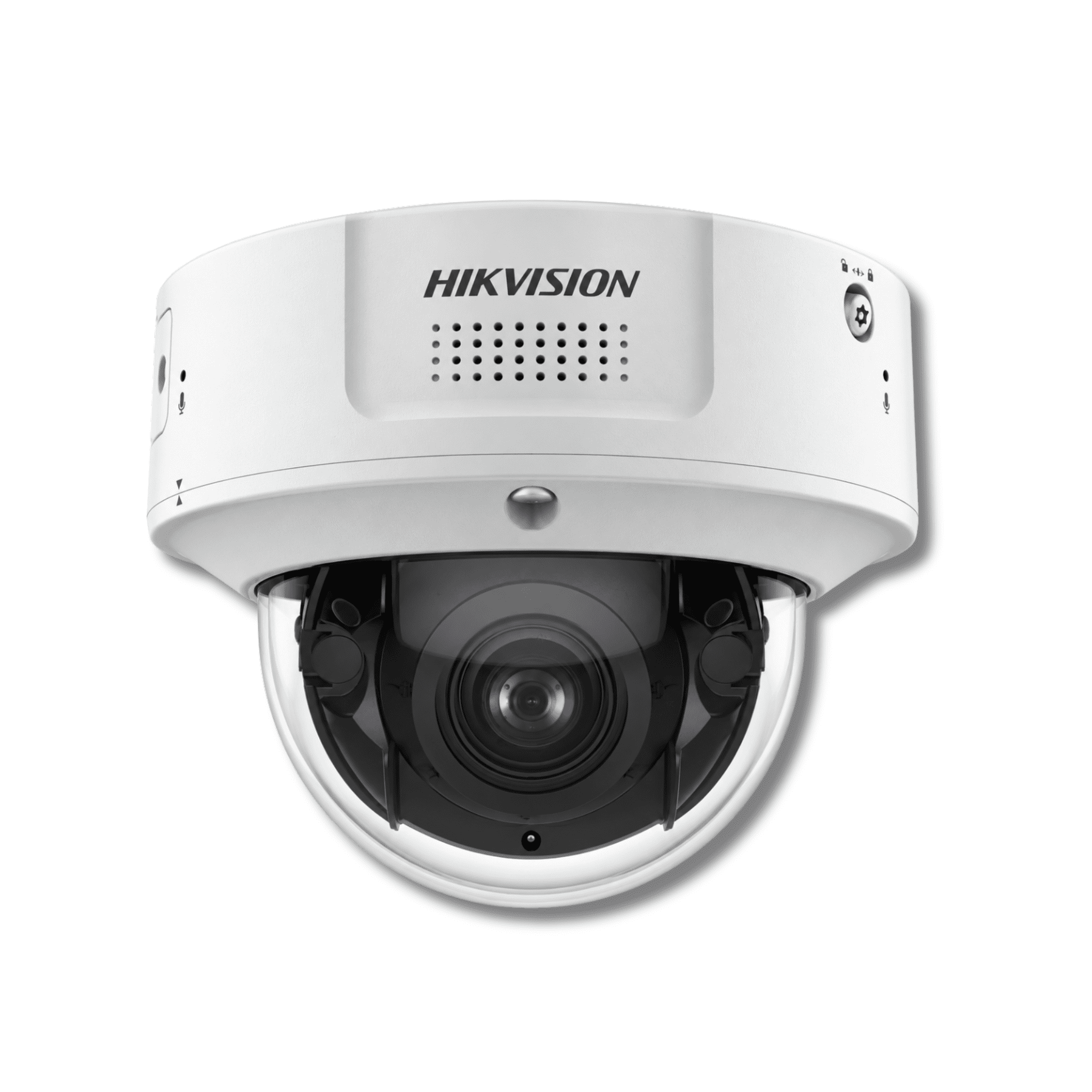

Hikvision iDS-2CD7146G2-IZHSY 4MP DeepinView Network Dome Camera

The Hikvision iDS-2CD7146G2-IZHSY is an advanced 4MP DeepinView motorised varifocal network dome camera designed for professional CCTV installations requiring high image quality, powerful low-light performance, sophisticated deep-learning analytics and robust environmental protection.

The camera uses a 1/1.8-inch Progressive Scan CMOS sensor with a maximum resolution of 2688 x 1520. It combines DarkFighter 2.0 technology, ShotN imaging, 150dB Wide Dynamic Range and Smart IR illumination to provide detailed surveillance footage across challenging lighting conditions.

This exact iDS-2CD7146G2-IZHSY version also incorporates a heater and NEMA 4X moderate anti-corrosion protection, together with IP67 weather resistance and IK10 vandal resistance.

4MP DeepinView Imaging

The camera delivers a maximum resolution of 2688 x 1520 pixels, providing 4MP surveillance video with substantially more detail than standard 1080p Full HD.

The larger 1/1.8-inch image sensor is designed to support high-quality image capture in demanding surveillance environments, particularly where low-light performance, high dynamic range and intelligent analytics are required.

DarkFighter 2.0 Low-Light Technology

The iDS-2CD7146G2-IZHSY incorporates Hikvision DarkFighter 2.0 technology for enhanced low-light surveillance.

The official current specification lists minimum illumination of 0.0005 Lux in colour at F1.2 with AGC enabled and 0.0001 Lux in black and white at F1.2 with AGC enabled.

With infrared illumination active, the camera supports 0 Lux operation.

ShotN Technology

ShotN technology is included to improve the capture of moving human and vehicle targets travelling at different speeds.

This is particularly useful in professional surveillance environments where subjects may be walking, running or moving in vehicles and where maintaining useful target detail is important.

150dB Wide Dynamic Range

The camera supports 150dB Wide Dynamic Range.

This helps preserve detail in scenes containing severe differences between bright and dark areas, such as entrances, loading bays, building lobbies or locations with strong daylight behind a subject.

Additional image-enhancement features include Back Light Compensation, Highlight Compensation, 3D Digital Noise Reduction, distortion correction and defog.

Motorised Varifocal P-Iris Lens

The iDS-2CD7146G2-IZHSY is available with two different motorised varifocal lens options:

• 2.8-12mm
• 8-32mm

The lens supports automatic, semi-automatic and manual focusing together with P-Iris control.

The exact lens fitted to the supplied camera must be confirmed before publishing lens-specific structured data or a GTIN.

2.8-12mm Lens Version

The 2.8-12mm version provides a wide-to-telephoto field of view suitable for applications requiring flexible scene coverage.

• Horizontal field of view: approximately 114.6° to 41.8°
• Vertical field of view: approximately 59.3° to 23.6°
• Diagonal field of view: approximately 141.3° to 48.1°
• Aperture: F1.38 to F2.53
• Smart IR monitoring range: up to 40m

8-32mm Lens Version

The 8-32mm version provides a narrower and longer-reaching field of view for applications requiring more concentrated surveillance at greater distances.

• Horizontal field of view: approximately 42.5° to 15.2°
• Vertical field of view: approximately 23.4° to 8.7°
• Diagonal field of view: approximately 49.7° to 17.3°
• Aperture: F1.7 to F1.73
• Smart IR monitoring range: up to 60m

Smart Infrared Illumination

The camera uses 850nm infrared supplemental lighting with Smart Supplement Light control.

The maximum IR monitoring distance depends on the selected lens version: up to 40m with the 2.8-12mm version and up to 60m with the 8-32mm version.

The actual effective night-viewing distance depends on scene conditions, installation height, weather, reflective surfaces and camera configuration.

High Frame Rate Video

The camera supports high-frame-rate surveillance in Monitoring Mode.

For UK 50Hz operation, the current specification supports up to 50fps at 2688 x 1520 and up to 100fps at 1920 x 1080.

In 60Hz mode the manufacturer specifies up to 60fps at 4MP and up to 120fps at 1080p.

High frame rate is specifically supported under Monitoring Mode. Smart Mode uses lower frame rates while intelligent analytics are active.

Five Independent Video Streams

The DeepinView platform supports up to five video streams.

This provides flexibility for recording, live monitoring, remote viewing and integration applications where different resolutions, frame rates or compression profiles may be required simultaneously.

H.265+ Compression

The main stream supports H.265+, H.265, H.264+ and H.264 video compression.

H.265+ is designed to reduce network bandwidth and storage usage compared with less efficient compression methods when used in suitable surveillance scenes.

Deep Learning Multi-Target Detection

The camera uses embedded deep-learning algorithms to detect and capture multiple target types.

Hikvision specifies simultaneous detection and capture of:

• Human bodies
• Faces
• Vehicles

The camera can extract multiple target attributes and supports ShotN technology, dynamic mosaic masking and target-type counting.

Human and Vehicle Perimeter Protection

Deep-learning perimeter protection supports:

• Line crossing detection
• Intrusion detection
• Region entrance detection
• Region exit detection

Events can be filtered by specified target types including humans and vehicles, helping reduce alarms caused by irrelevant movement such as leaves, lighting changes, animals or flags.

Face Capture

The camera provides advanced face-capture capability.

Hikvision specifies detection of up to 120 faces simultaneously, capture of up to 40 face pictures per frame and uploading of up to 10 face pictures per second.

Best-shot and quick-shot capture modes are supported, together with dynamic mosaic masking and extraction of face characteristics.

Face Comparison

The camera supports built-in face comparison.

Up to 10 face libraries can be configured, with up to 30,000 faces per library and a total capacity of up to 150,000 faces.

Face-library encryption is supported.

License Plate Recognition

The current DeepinView specification includes license-plate recognition within its multi-target detection functions.

Actual deployment capability depends on the installation geometry, target distance, vehicle speed, lens selection, lighting and configuration.

People Counting

The iDS-2CD7146G2-IZHSY provides advanced people-counting functionality, including multi-dimensional people counting.

Supported functions include entering, exiting and passing-by statistics, real-time uploading, periodic reports and face-feature-based deduplication.

Queue Management

The camera supports queue-management analytics with up to eight detection regions.

Functions include monitoring the number of people queuing and the waiting time of individuals, with configurable alarm thresholds and reporting.

Regional People Counting

Regional people-counting functions include people-density detection, people-number exception detection and waiting-time exception detection.

The camera can report real-time occupancy-related information and configurable congestion conditions.

Heat Map

The camera can generate heat-map information based on the amount of people visiting an area or their dwell time.

Both spatial heat maps and time-based heat-map reporting are supported.

On / Off Duty Detection

Deep-learning analytics can be used for absence detection and on/off-duty monitoring within predefined regions.

This allows the system to identify supported staffing or attendance conditions according to configured rules.

PPE Detection

The camera supports Personal Protective Equipment detection.

Hikvision specifies detection of hard hats and reflective clothing, with alarms available where configured protective equipment is not detected.

Supported hard-hat colours include red, orange, yellow, blue, white and additional colours.

Activity Analysis

The current camera specification includes activity-analysis functions capable of detecting supported behaviours such as a person smoking or making a phone call.

These functions use detected body, hand, face and activity attributes according to the configured analytics mode.

AcuSeek Support

The camera supports AcuSeek searching for humans, licence plates, motor vehicles, non-motor vehicles and animals.

Hikvision states that AcuSeek functionality requires a compatible AcuSeek NVR or server.

Dual Built-In Microphones

The camera includes two built-in microphones for audio capture.

Environment noise filtering is supported to improve usable audio quality in suitable environments.

Audio recording and monitoring should only be used where lawful and appropriate for the installation.

Built-In Speaker

An integrated speaker is provided for real-time audio security applications.

The manufacturer specifies a maximum speaker power consumption of 1.5W, maximum sound pressure level of 98dB and an approximate speaker operating range of up to 10m.

External Audio Input and Output

In addition to the built-in microphones and speaker, the camera provides one line-level audio input and one line-level audio output through 3.5mm connectors.

This allows suitable external audio equipment to be integrated when required.

Two Alarm Inputs and Two Alarm Outputs

The camera provides two alarm inputs and two alarm outputs.

The alarm outputs are rated up to 24V DC or 24V AC at 1A according to the manufacturer's specification.

RS-485 Interface

One half-duplex RS-485 interface is provided with support for Hikvision, Pelco-P and Pelco-D protocols.

12V DC Auxiliary Power Output

The camera includes a 12V DC auxiliary power output rated up to 100mA.

This should only be used within the manufacturer's stated electrical limit.

Gigabit Ethernet

The camera provides one self-adaptive 10/100/1000Mbps RJ45 Ethernet interface.

This Gigabit connection supports high-bandwidth network transmission and professional network-surveillance integration.

ONVIF and Professional Integration

Supported APIs and integration standards include ISAPI, SDK, ISUP, OTAP and ONVIF Profiles S, G, T and M.

This can assist integration with compatible Hikvision and third-party surveillance platforms, although exact compatibility should always be confirmed before deployment.

Hik-Connect, HikCentral and iVMS-4200

The current specification lists Hik-Connect, HikCentral and iVMS-4200 as supported client platforms.

Actual functionality depends on the network design, firmware and selected management platform.

microSD Storage up to 1TB

The standard non-1T iDS-2CD7146G2-IZHSY includes a memory-card slot supporting microSD, microSDHC and microSDXC cards up to 1TB.

Compatible network storage using NAS is also supported, together with Automatic Network Replenishment and cloud-storage functionality.

Important 1TB SSD Variant Difference

The standard iDS-2CD7146G2-IZHSY should not be confused with the separate iDS-2CD7146G2-IZHSY(1T) version.

The standard model supports removable microSD storage up to 1TB. The separate (1T) variant additionally includes an integrated 1TB SSD.

This listing does not claim that an internal 1TB SSD is supplied with the standard non-1T camera.

12V DC, 24V AC or PoE Power

The standard non-1T version supports three power options:

• 12V DC ±20%
• 24V AC ±20%
• IEEE 802.3at PoE, Type 2, Class 4

For the non-1T version, maximum consumption is specified at approximately 15.3W on 12V DC, 13.7W on 24V AC and 15.2W using PoE.

Built-In Heater

The H suffix in iDS-2CD7146G2-IZHSY identifies a heater-equipped version.

The current specification lists a startup and operating temperature range from -40°C to +65°C for models with the H heater option.

Operating humidity is specified at 95% or less, non-condensing.

IP67 Weather Protection

The camera carries an IP67 ingress-protection rating.

This provides protection against dust and water ingress for correctly installed indoor and outdoor surveillance applications.

IK10 Vandal Resistance

The camera is rated IK10 for impact resistance.

This makes the dome format suitable for locations where additional physical protection against accidental impact or deliberate interference is required.

NEMA 4X Anti-Corrosion Protection

The Y suffix identifies the anti-corrosion version.

Hikvision specifies NEMA 4X moderate anti-corrosion protection for the Y model.

The manufacturer describes this protection level as suitable for environments with moderate anti-corrosion requirements, including some coastal or acid-rain-affected locations. Site-specific environmental assessment is still required before installation.

Metal Construction

The camera uses a metal base and metal cover.

Overall dimensions are approximately 144.3mm in diameter by 114.1mm high, with a net weight of approximately 970g.

Hikvision iDS-2CD7146G2-IZHSY Product Facts

Important Lens and Storage Variant Information

This product family contains four particularly easy-to-confuse combinations:

• iDS-2CD7146G2-IZHSY(2.8-12mm)
• iDS-2CD7146G2-IZHSY(8-32mm)
• iDS-2CD7146G2-IZHSY(1T)(2.8-12mm)
• iDS-2CD7146G2-IZHSY(1T)(8-32mm)

This listing is for the standard iDS-2CD7146G2-IZHSY family without claiming the optional built-in 1TB SSD. The exact lens should be selected and published according to the physical camera being supplied.
