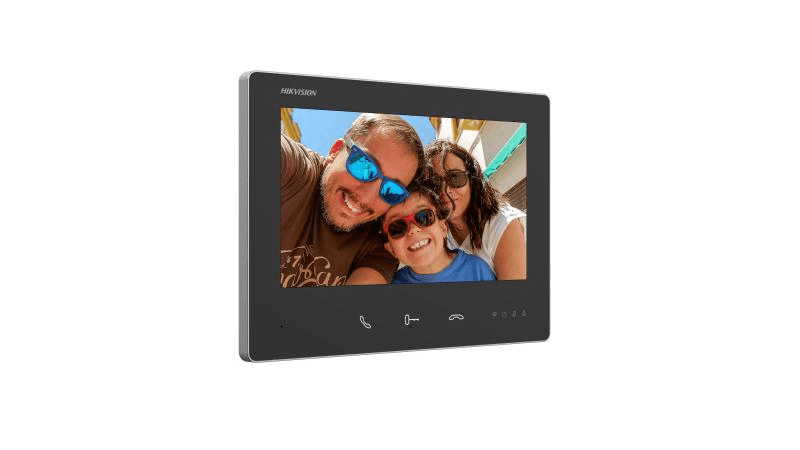

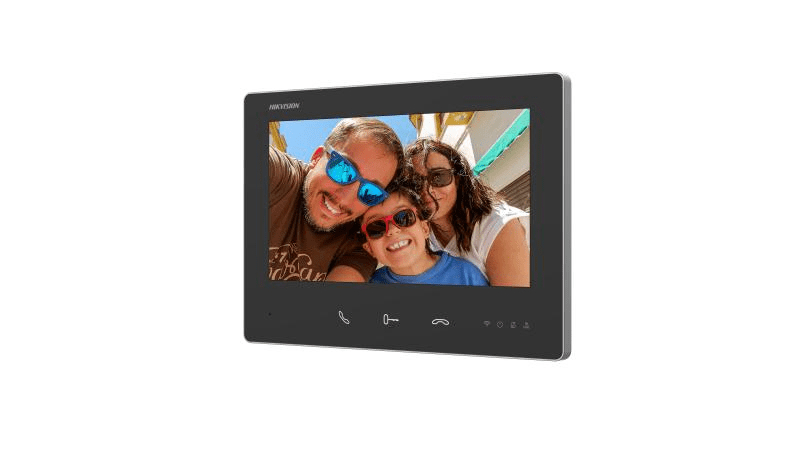

Hikvision DS-KH7300EY-WTE2 7-Inch 2-Wire HD Indoor Station

The Hikvision DS-KH7300EY-WTE2 is a 7-inch 2-Wire HD video intercom indoor station designed for compatible Hikvision 2-Wire HD intercom systems. Finished in black, it combines a 1024 x 600 capacitive colour touchscreen with built-in Wi-Fi, two-way audio, Hik-Connect mobile functionality and convenient door-control features in a slim surface-mounted indoor unit.

The indoor station is designed to provide residents, staff and other authorised users with a convenient interface for communicating with compatible door stations, viewing live video, answering incoming calls and releasing a connected door through the supported intercom system.

It uses Hikvision's 2-Wire HD architecture and is powered at 48V through a compatible DS-KAD7060EY or DS-KAD7061EY distributor, allowing power and intercom communication to form part of the supported two-wire installation.

7-Inch Capacitive Touchscreen

The DS-KH7300EY-WTE2 features a 7-inch capacitive touchscreen with a native resolution of 1024 x 600 pixels.

The display uses a colour TFT panel and provides a clear visual interface for answering calls, viewing compatible door stations and accessing supported intercom functions.

Capacitive touch operation allows users to control the indoor station directly from the screen without relying entirely on conventional physical buttons.

1024 x 600 Display Resolution

The native screen resolution is 1024 x 600 pixels.

This resolution is designed for the indoor station's intercom interface, live door-station viewing and supported system functions.

The DS-KH7300EY-WTE2 should be described as a video intercom indoor station rather than as a general-purpose computer monitor or CCTV display.

Built-In 2.4GHz Wi-Fi

The DS-KH7300EY-WTE2 is the Wi-Fi-equipped version within the DS-KH7300EY family.

It supports 2.4GHz Wi-Fi using IEEE 802.11b, IEEE 802.11g and IEEE 802.11n standards.

The Wi-Fi functionality supports compatible network and Hik-Connect features. A suitable 2.4GHz wireless network and correct system configuration are required where Wi-Fi functionality is being used.

Hik-Connect Mobile App Support

Hikvision specifies Hik-Connect App support for the DS-KH7300EY-WTE2.

When the complete intercom system has been correctly installed, networked and configured, compatible Hik-Connect functionality can allow supported intercom features to be accessed from a mobile device.

Available mobile functions can depend on the complete system configuration, network connection, account setup, compatible door station and current application or firmware capabilities.

Built-In Microphone and Loudspeaker

The indoor station includes one built-in omnidirectional microphone and one built-in loudspeaker.

This provides two-way voice communication with compatible intercom devices without requiring an external handset, microphone or speaker for normal operation.

The audio system supports G.711 U and G.711 A audio compression with a specified 64Kbps audio compression bitrate.

Noise Suppression and Echo Cancellation

Hikvision specifies noise suppression and echo cancellation for the audio system.

These audio-processing functions are designed to improve communication quality during supported intercom calls.

Audio volume is adjustable through the supported indoor-station controls.

Three Dedicated Touch Buttons

In addition to the touchscreen interface, the DS-KH7300EY-WTE2 includes three dedicated touch buttons.

• Answer
• Unlock
• Hang Up

The dedicated controls provide quick access to core intercom functions without requiring the user to navigate through multiple on-screen menus.

Physical Reset Button

The indoor station also incorporates one physical reset button.

This is separate from the three user-facing touch controls and is intended for supported reset and configuration procedures.

Four Status Indicators

The Wi-Fi version provides four status indicators:

• Wi-Fi
• Power
• Mute
• In Use

These indicators provide quick visual feedback about important operating states of the indoor station.

Up to Four Custom Virtual Buttons

Hikvision specifies support for a maximum of four custom virtual buttons.

These configurable on-screen controls can be used for supported intercom functions according to the installation and system configuration.

Live View of Compatible Door Stations

The DS-KH7300EY-WTE2 supports live viewing of compatible door stations.

This allows users to access the supported door-station video from the indoor station rather than only viewing video when an incoming call is received.

The exact door station and complete 2-Wire HD system must be compatible and correctly configured.

Professional Studio and Trade Function

The indoor station supports Hikvision's Professional Studio / Trade button function.

Hikvision describes this feature as supporting automatic door opening in the appropriate configured operating mode.

This type of functionality can be useful in suitable reception, trade or professional environments where automatically releasing a controlled entrance during a defined operating mode is required.

The feature should only be enabled where appropriate for the security requirements of the site.

Floor Call Support

The DS-KH7300EY-WTE2 supports the Hikvision Floor Call function.

This allows the indoor station to participate in supported calling arrangements within a compatible intercom installation.

The exact function available depends on the design and configuration of the complete system.

TF Card Support up to 128GB

The indoor station includes a TF card interface supporting compatible cards up to 128GB.

Hikvision specifies SD 2.0 or lower version support for the storage interface.

With a compatible TF card installed, the indoor station supports a capacity of up to 200 captured pictures according to the manufacturer's published specification.

A TF card should not be assumed to be supplied with the indoor station unless it is explicitly included by the seller.

Up to Three Linked Indoor Extensions

The DS-KH7300EY-WTE2 supports up to three linked indoor extensions.

This provides additional flexibility in larger homes, apartments or commercial environments where supported intercom functionality may be required at more than one indoor position.

The exact connection arrangement must follow Hikvision's supported 2-Wire HD topology and system-design requirements.

Two 2-Wire IP Interfaces

The indoor station provides two 2-Wire IP interfaces.

Hikvision identifies these as one input and one output interface.

This arrangement supports compatible 2-Wire HD connection topologies and helps provide flexibility when installing multiple supported devices within the intercom system.

One Alarm Input

The DS-KH7300EY-WTE2 includes one alarm input.

This provides an interface for a supported external alarm-related input where required by the compatible intercom-system configuration.

The official specification does not list a separate alarm output for this model.

TCP/IP and RTSP Support

The network specification includes TCP/IP and RTSP communication protocols.

These form part of the indoor station's supported network and video-intercom operation within a correctly configured system.

Embedded Linux Operating System

The DS-KH7300EY-WTE2 runs an embedded Linux operating system using an embedded processor.

The official technical specification lists 32MB ROM and 128MB RAM.

These figures describe the internal resources of the intercom indoor station and should not be confused with user-removable storage capacity.

48V Power through the 2-Wire HD Distributor

The indoor station requires a 48V supply provided through a compatible Hikvision DS-KAD7060EY or DS-KAD7061EY 2-Wire HD distributor.

Hikvision specifies maximum power consumption of 5W or less and standby consumption of 1.2W or less.

The DS-KH7300EY-WTE2 should therefore not be advertised as a standard 12V DC indoor station or conventional PoE monitor.

Plug-and-Play 2-Wire HD Design

Hikvision promotes the DS-KH7300EY-WTE2 as supporting plug-and-play operation and different supported connection topologies within the 2-Wire HD system.

DEC knob configuration is also provided for supported device and system setup.

Installation should still follow the current Hikvision design requirements, cabling recommendations and distributor capacity limits.

Surface-Mounted Indoor Installation

The DS-KH7300EY-WTE2 is designed for surface mounting.

Its dimensions are approximately 190.2mm wide, 138.2mm high and 20mm deep.

The unit is intended for indoor installation. Hikvision does not specify an outdoor protective rating for this model.

Operating Environment

The indoor station is specified for operation from -10°C to +50°C.

Supported operating humidity is 10% to 90% relative humidity, non-condensing.

Because Hikvision identifies the application environment as indoor and provides no protective IP level in the official datasheet, it should not be installed as an exposed outdoor intercom display.

Black Model

The standard DS-KH7300EY-WTE2 model is the black version.

A separate DS-KH7300EY-WTE2/White version is also produced. Customers requiring the white version should select the specific white variant rather than assuming the two product codes are interchangeable.

Hikvision DS-KH7300EY-WTE2 Product Facts

Suitable Applications

The DS-KH7300EY-WTE2 is suitable for compatible Hikvision 2-Wire HD video intercom systems installed in homes, apartments, offices and other residential or commercial premises.

Its 7-inch touchscreen, Wi-Fi connectivity, Hik-Connect support, two-way audio and door-control features make it suitable for users who want a modern indoor intercom interface while retaining supported two-wire system architecture.

The indoor station must be used with compatible Hikvision 2-Wire HD components. Compatibility should be checked against the exact door station, distributor and other devices before installation.
