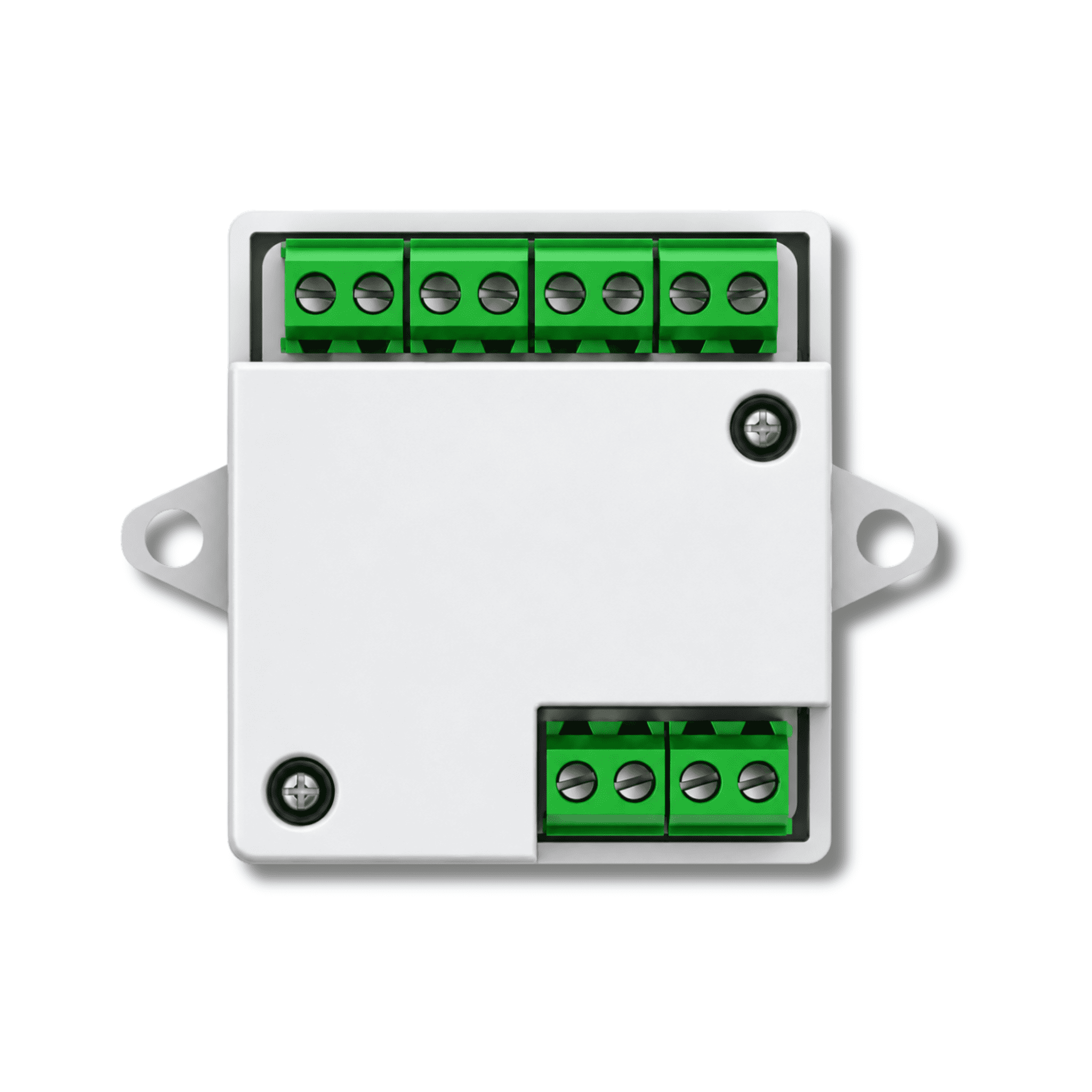

Hikvision DS-K2M062 Secure Door Control Unit

The Hikvision DS-K2M062 is a compact Secure Door Control Unit designed for professional access-control installations. It acts as the interface between a compatible Hikvision access control terminal and essential door hardware, including the electric lock, exit button and door contact.

Communication between the DS-K2M062 and the compatible access control terminal is provided through RS-485. The module can receive door-control commands from the terminal while collecting door-contact and exit-button signals and returning them to the access-control system.

Its small 53.95 x 43.5 x 15.5mm form factor makes it particularly useful where a dedicated secure door-control interface is required without using a large multi-door controller.

Secure Door Control Interface

The DS-K2M062 is designed to sit between the access-control terminal and the connected door hardware.

Instead of connecting all door-side devices directly to the access terminal, the module provides dedicated connections for the electric lock, exit button and door contact while communicating with the terminal through RS-485.

This provides a dedicated door-side control point for a compatible Hikvision access-control installation.

RS-485 Communication

The DS-K2M062 includes one RS-485 interface for communication with a compatible Hikvision access-control terminal.

Through this RS-485 connection, the module can receive and execute supported commands sent by the terminal.

Hikvision specifies support for the following door-control commands:

• Open door
• Close door
• Normally open
• Normally closed

The connected terminal and complete access-control system must support the required configuration and functions.

Single Lock Control

The DS-K2M062 provides one dedicated lock-control connection.

This allows a compatible electric locking device to form part of the access-control installation, with the secure door control unit executing supported commands received from the access-control terminal.

The DS-K2M062 should not be treated as an electric lock or as a complete standalone locking solution. The correct lock, power arrangement and access controller must be selected separately according to the installation design.

Exit Button Input

One dedicated exit-button connection is provided.

A compatible request-to-exit button can therefore be connected to the module as part of the controlled-door installation.

The DS-K2M062 collects the exit-button signal and communicates it back to the connected access-control terminal. Hikvision also specifically states that the unit supports exit-button linkage.

Door Contact Input

The module provides one door-contact input.

This allows a suitable door magnetic contact to be connected so that supported door-status information can be collected by the DS-K2M062 and communicated to the access-control terminal.

A door contact is useful within an access-control system for monitoring whether the controlled door is in the expected open or closed state, depending on the wider system configuration.

Compact Single-Door Module

The DS-K2M062 is a compact module intended for one controlled-door arrangement.

Its official interface specification consists of:

• 1 x lock control
• 1 x exit button connection
• 1 x door contact input
• 1 x RS-485 interface

This makes the DS-K2M062 substantially simpler than larger access-control modules containing multiple alarm inputs, alarm outputs or additional reader interfaces.

For accuracy, functions belonging to other Hikvision secure-door modules should not be assumed to be present on the DS-K2M062.

Power Supply Status Indicator

The DS-K2M062 includes one indicator for power-supply status.

This provides a simple visual indication to assist installers when confirming that the module is receiving power during installation and maintenance.

12V DC Power Supply

The official Hikvision specification lists a 12V DC power requirement for the DS-K2M062.

Typical power consumption is specified at 3W.

The power supply used within the access-control installation should be correctly sized for the complete system, taking into account the secure door control unit, electric lock, access-control terminal and any other connected devices.

No PoE power input is specified for the DS-K2M062.

Wide Operating Temperature Range

The DS-K2M062 is specified to operate between -30°C and +60°C.

Hikvision also specifies a working relative-humidity range of 0% to 90%.

No IP weatherproof rating is stated in the official DS-K2M062 datasheet used for this listing, so the module should not be advertised as a directly exposed outdoor weatherproof device.

Ultra-Compact Dimensions

The DS-K2M062 measures approximately 53.95 x 43.5 x 15.5mm.

These dimensions make it considerably smaller than a full access controller and allow the unit to be incorporated discreetly into an appropriately protected access-control installation.

Physical Connections

Hikvision's physical-interface diagram identifies the following connections on the DS-K2M062:

• Power input
• Exit button
• Lock
• Door contact
• RS-485

These connections correspond directly with the functions documented in the manufacturer's specification.

Not a Standalone Access-Control Terminal

The DS-K2M062 should not be confused with a complete standalone access-control terminal.

It does not provide the user-identification functions associated with a card reader, keypad, fingerprint reader or facial-recognition terminal. Instead, it works as a secure door-side module within a compatible access-control system.

A suitable access-control terminal or controller is therefore required for the complete system.

No Wiegand Interface Specified

The official DS-K2M062 specification does not list a Wiegand reader interface.

This is an important distinction from some other Hikvision secure door-control products. A Wiegand reader connection should therefore not be advertised as a feature of this exact model.

No Additional Alarm Inputs or Outputs Specified

The official DS-K2M062 interface table does not specify separate alarm-input or alarm-output interfaces.

The documented interfaces are specifically limited to lock control, exit button, door contact and RS-485.

This prevents the DS-K2M062 from being confused with other modules in the access-control range that provide additional alarm or reader interfaces.

Hikvision DS-K2M062 Product Facts

Typical Applications

The DS-K2M062 can be used within compatible access-control installations requiring a compact dedicated interface between the terminal and controlled door hardware.

Potential applications include offices, apartment buildings, commercial premises, warehouses, education facilities, staff areas and other controlled-access environments.

The exact access-control terminal, lock, exit button, door contact and power arrangement must be checked for compatibility before installation.

Professional Installation Recommended

Access-control systems contain electric locking, power and door-safety components that must operate together correctly.

The DS-K2M062 should therefore be installed and configured according to the requirements of the complete Hikvision access-control system and the connected locking equipment.

Where the controlled door forms part of an emergency escape route or fire-safety system, the complete installation must comply with the applicable access-control, building and life-safety requirements.
