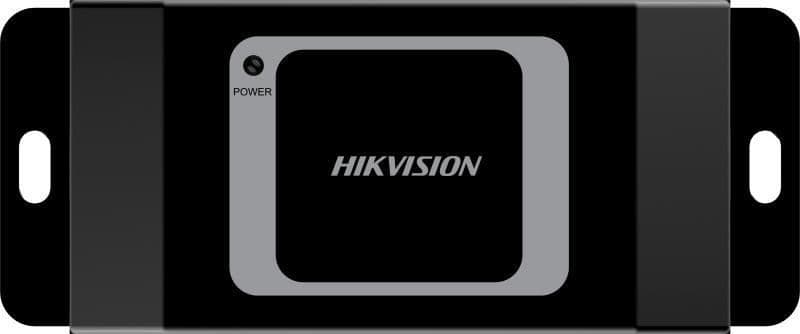

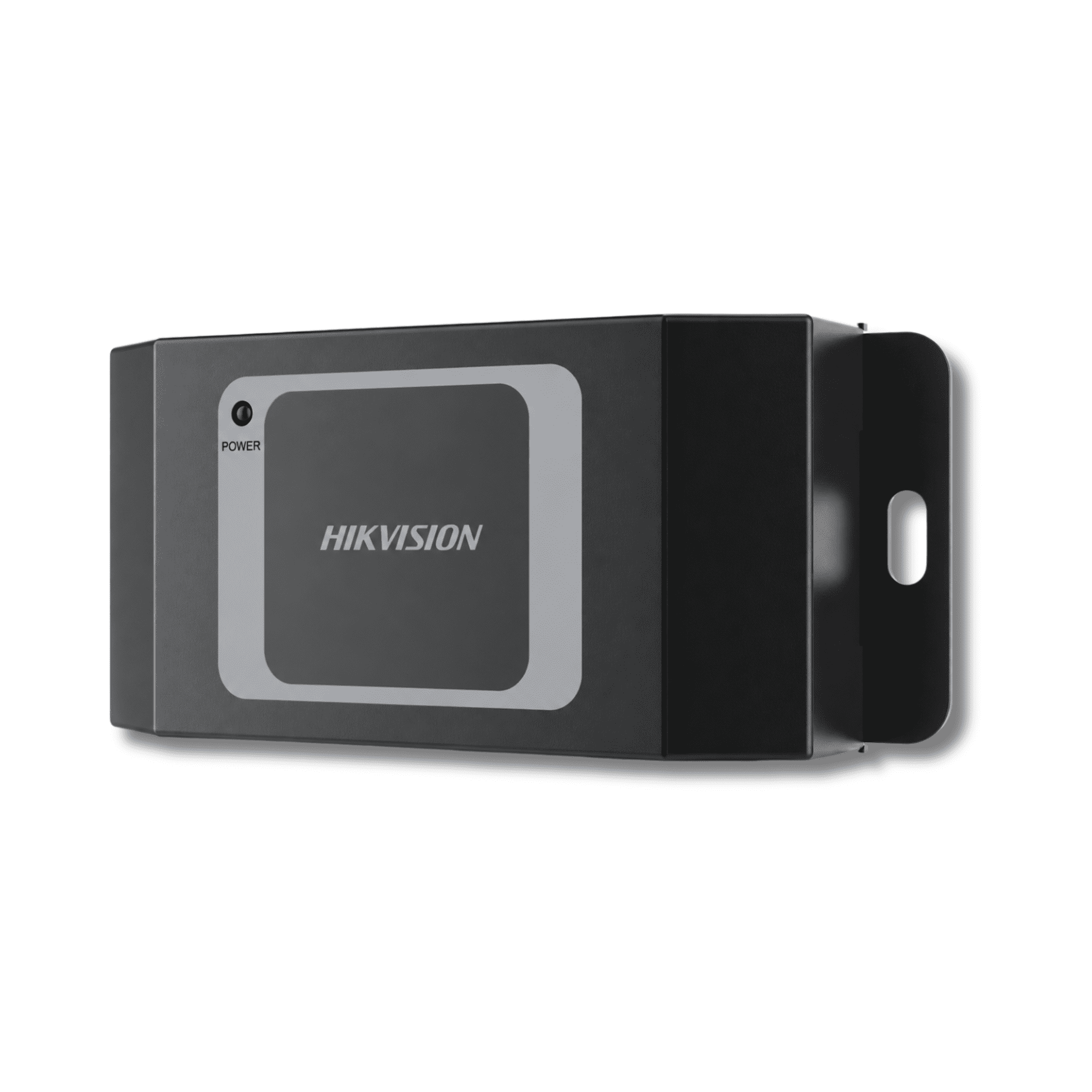

Hikvision DS-K2M061 Secure Door Control Unit

The Hikvision DS-K2M061 is a professional secure door control unit designed for compatible Hikvision access-control installations. Hikvision describes the device as the interface layer between the access control terminal and the connected door hardware, allowing door-control equipment to be connected through a dedicated secure module rather than relying only on the terminal itself.

The DS-K2M061 communicates with a compatible Hikvision access control terminal using RS-485 and can execute door-control commands from the terminal, including opening the door, closing the door, normally open operation and normally closed operation. It also monitors connected door hardware and input signals and passes relevant information back to the access control terminal.

Designed for Secure Door Control

The DS-K2M061 is intended to sit between a compatible access control terminal and the physical door-control components. Typical connected equipment can include an electric lock, door contact, exit button and compatible Wiegand card reader.

This architecture gives professional installers a dedicated module for managing the physical door interfaces while maintaining communication with the access-control terminal over RS-485.

The DS-K2M061 should not be confused with a complete standalone access controller or access-control terminal. It is a secure door control module designed to operate as part of a compatible Hikvision access-control system.

RS-485 Communication with the Access Control Terminal

The DS-K2M061 communicates with the compatible access-control terminal using an RS-485 connection.

Hikvision specifies that the module can receive and execute commands from the access control terminal including:

• Open door
• Close door
• Normally open operation
• Normally closed operation

The module also sends supported door-status and input information back to the access control terminal.

Lock Control Interface

The DS-K2M061 provides one lock-control interface for connecting compatible electric locking equipment as part of the access-control installation.

The exact electric lock, power requirements and wiring arrangement must be selected according to the access-control system design and the lock manufacturer's requirements. A lock is not stated as being included with the DS-K2M061.

Door Contact Input

One door-contact input is provided.

The door contact allows the module to receive the door magnetic signal so the connected access-control system can monitor supported door status information.

Hikvision's documentation specifically states that the DS-K2M061 can collect the door magnetic signal and send it to the access control terminal.

Exit Button Connection

The module provides one dedicated exit-button connection.

This allows a compatible request-to-exit or door-exit button to form part of the access-control installation. Hikvision also specifies fire-interface and exit-button linkage support.

The exact behaviour of the connected exit button depends on the complete system design and configuration.

Two Alarm Inputs

The Hikvision DS-K2M061 provides two alarm inputs.

These inputs allow compatible external alarm or access-control signals to be incorporated into the system according to the installation requirements.

The purpose and behaviour of each alarm input should be configured according to the supported access-control terminal and the site design.

One Alarm Output

One alarm output is also provided for compatible access-control integration.

The alarm output gives installers an additional interface for supported external equipment or alarm-related functions where required by the system design.

Wiegand Card Reader Interface

The DS-K2M061 includes one Wiegand interface.

Hikvision specifies that this interface can be used to connect a compatible Wiegand card reader, allowing card-based access functions to be incorporated into the access-control system.

Wiegand compatibility does not mean that every third-party reader is automatically supported. The exact reader, wiring and Wiegand format should be checked for compatibility before installation.

Tamper Alarm Support

The DS-K2M061 supports tamper alarm functionality.

Hikvision states that the module can collect the tamper-proof signal and communicate it to the connected access control terminal.

This provides additional system monitoring for supported tamper conditions within the access-control installation.

Fire Interface and Exit Button Linkage

Hikvision lists fire-interface and exit-button linkage as supported functionality for the DS-K2M061.

This allows the module to participate in compatible access-control safety and door-release workflows where the complete installation has been correctly designed and configured.

Fire-alarm and life-safety installations must always be designed and commissioned according to the applicable system requirements, building regulations and fire-safety standards. The DS-K2M061 should not be treated as a complete fire-alarm control device.

4-Position DIP Switch for Device ID

The DS-K2M061 includes a 4-position DIP switch for configuring the module ID number.

This allows installers to assign the appropriate address when configuring the module as part of a supported Hikvision access-control installation.

Status Indication

Hikvision specifies an indicator for power-supply status and also documents RS-485 communication indication for monitoring communication status.

These indicators can help installers during commissioning and troubleshooting by providing visual information about module power and supported communication activity.

12V DC Power

The current Hikvision datasheet specifies a 12V DC, 0.5A power supply requirement for the DS-K2M061.

The correct regulated power source should be selected according to Hikvision's requirements and the wider access-control installation.

The DS-K2M061 is not specified as a PoE-powered device.

Compact Wall-Mounted Design

The secure door control unit is designed for wall mounting.

Its compact dimensions are approximately 48mm x 115mm x 26mm, allowing the module to be positioned within a suitable protected installation area close to the connected door-control hardware.

Hikvision specifies a net weight of approximately 0.20kg and a gross packaged weight of approximately 0.28kg.

Wide Operating Temperature Range

The current Hikvision specification lists an operating temperature range from -40°C to +70°C.

Specified working humidity is 0% to 90% relative humidity.

No outdoor IP weatherproof rating is stated in the current DS-K2M061 datasheet. The module should therefore be installed in a suitable protected environment rather than being treated as a weatherproof outdoor device.

Hikvision DS-K2M061 Product Facts

Typical Access Control Applications

The DS-K2M061 is designed for professional access-control installations where a compatible Hikvision terminal needs to interface securely with door-control equipment.

Typical applications can include office entrances, staff-only doors, commercial premises, apartment communal entrances, warehouses, educational buildings and other controlled-access areas where compatible Hikvision access-control hardware is being deployed.

The exact access-control terminal, card reader, electric lock, exit button, power supply and other system components should always be checked for compatibility before installation.
