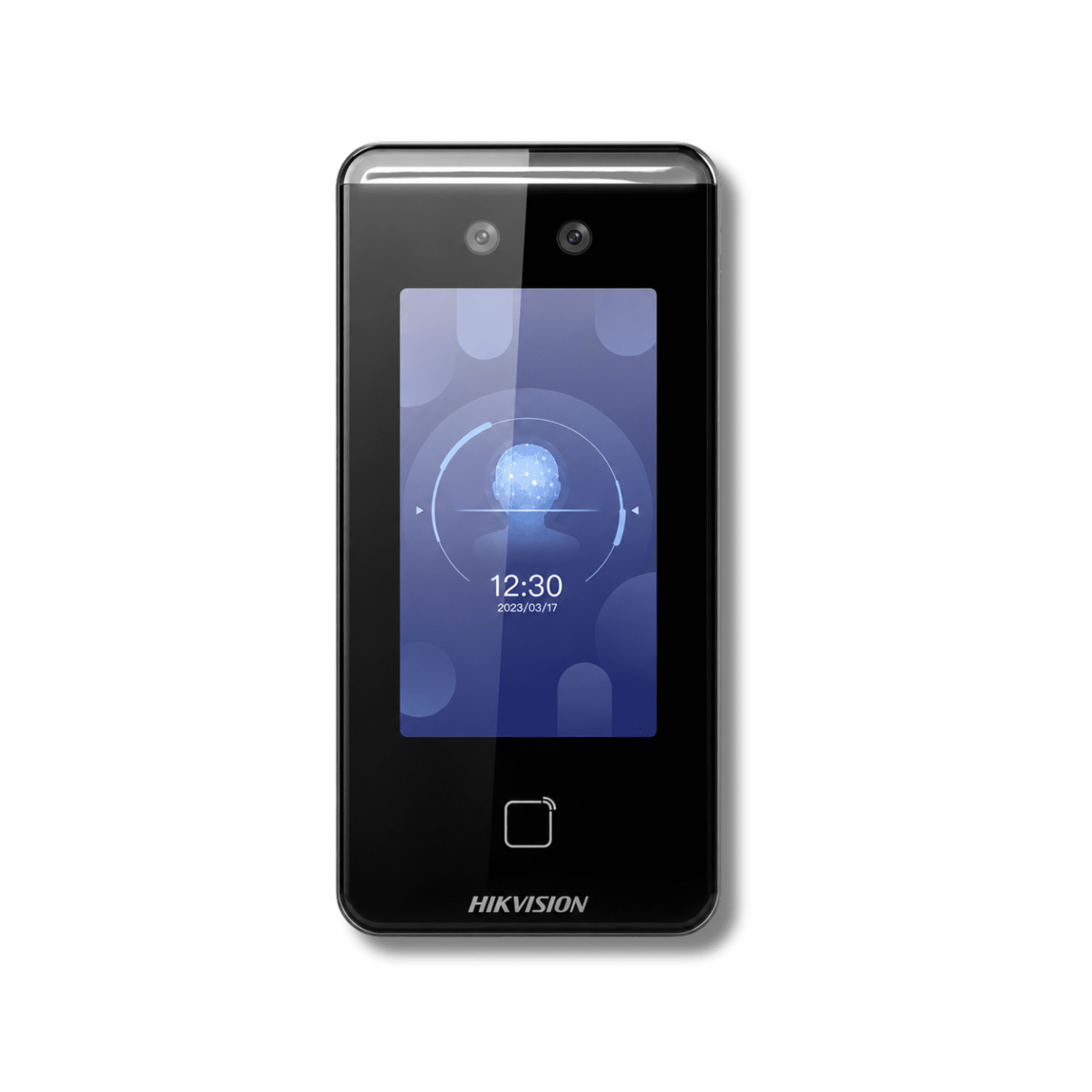

Hikvision DS-K1T341CMW Face Recognition Access Terminal

The Hikvision DS-K1T341CMW is a professional Value Series face recognition terminal designed for modern access-control installations requiring fast biometric authentication, M1 card access, network connectivity and integrated door control in a compact unit.

It combines a 4.3-inch capacitive touchscreen with a 2MP wide-angle dual-lens imaging system, built-in M1 card reader, deep-learning face recognition, 2.4GHz Wi-Fi, wired Ethernet and a built-in access controller.

The terminal can store up to 3,000 enrolled faces, 3,000 cards and 150,000 access events. Hikvision specifies a face-recognition duration of less than 0.2 seconds per user, helping support quick access in offices, commercial premises, staff entrances and other controlled-door environments.

4.3-Inch Capacitive Touchscreen

The DS-K1T341CMW features a 4.3-inch capacitive touchscreen that provides the local interface for supported access-control, enrolment and configuration functions.

The touchscreen gives users and installers a clear interface for interacting with the terminal without relying solely on physical buttons.

This exact CMW model should not be confused with other DS-K1T341 variants that may use different authentication hardware or display specifications.

2MP Wide-Angle Dual-Lens Camera

The terminal incorporates two camera lenses with a 2MP imaging specification.

Hikvision specifies a 720P video stream and a field of view of approximately 41.5° horizontally, 75.5° vertically and 87° diagonally.

The dual-lens arrangement forms part of the terminal's face-recognition and anti-spoofing system.

Fast Face Recognition

Hikvision specifies a face-recognition duration of less than 0.2 seconds per user.

This helps provide fast contactless authentication for registered users while reducing delays at controlled entrances.

The terminal uses a deep-learning algorithm developed for face-based access control.

3,000 Face Capacity

The DS-K1T341CMW supports storage for up to 3,000 enrolled faces.

This capacity makes it suitable for a range of small and medium-sized access-control applications including offices, warehouses, educational environments, commercial premises and staff-only entrances.

3,000 M1 Card Capacity

In addition to face recognition, the DS-K1T341CMW includes M1 card authentication.

The terminal supports up to 3,000 registered cards, allowing users to authenticate using compatible M1 credentials where the system has been configured for card access.

This exact CMW version does not include fingerprint authentication. Customers requiring a fingerprint-equipped model should select the appropriate fingerprint variant rather than assuming all DS-K1T341 models provide the same authentication hardware.

150,000 Event Capacity

The terminal supports storage for up to 150,000 access events.

Event records can form part of the access-control system's audit and management functions, depending on the configuration and software platform being used.

Multiple Authentication Options

The DS-K1T341CMW supports face and card authentication and can be configured according to the requirements of the supported access-control system.

Hikvision also lists QR-code recognition as a supported function for this exact model.

Authentication methods should be configured according to the site's security requirements and the capabilities of the wider access-control platform.

Face Anti-Spoofing

Face anti-spoofing functionality is supported.

This feature is designed to help the terminal distinguish a genuine face presentation from certain attempted presentation attacks.

No biometric system should be described as impossible to defeat, so this listing does not make an absolute security guarantee beyond the manufacturer's confirmed anti-spoofing support.

Mask Wearing Detection

The DS-K1T341CMW supports mask wearing detection.

This allows the terminal to identify supported mask-wearing conditions as part of the face-recognition workflow where the feature is enabled and correctly configured.

Built-In M1 Card Reader

The authentication specification lists M1 cards for this exact model.

Customers should use compatible M1 credentials rather than assuming compatibility with every contactless-card technology.

Built-In Access Controller

The DS-K1T341CMW includes a built-in access controller, allowing it to manage a compatible single-door access-control arrangement without requiring a separate controller for every basic installation.

The terminal provides dedicated interfaces for lock control, exit button and door contact monitoring.

Lock Control Interface

One lock-control interface is provided for integration with a compatible electric locking system.

The exact electric lock, power arrangement and fail-safe or fail-secure configuration must be selected according to the door and access-control design.

An electric lock is not confirmed as being included with the terminal.

Exit Button Interface

One exit-button interface is provided.

This enables a suitable request-to-exit device to form part of the access-control installation.

The exact exit button should be selected separately according to the installation requirements.

Door Contact Input

The DS-K1T341CMW includes one door-contact input.

A compatible magnetic door contact can therefore be incorporated so the access-control system can monitor supported door-status information.

Tamper Interface

One tamper interface is specified for the terminal.

Tamper monitoring forms part of the device's security functionality and helps the system identify supported physical interference conditions.

RS-485 Interface

The terminal includes one half-duplex Hikvision RS-485 interface.

Hikvision specifically states that the DS-K1T341CMW can connect to a compatible secure door control unit through RS-485. This arrangement can help protect door control because the lock-side module can remain separately located from the face terminal.

Wiegand Interface

One Wiegand interface is provided.

Hikvision specifies support for Hikvision 26-bit and 34-bit Wiegand formats.

The manufacturer also identifies Wiegand connectivity for use with a compatible external access controller or card reader.

Compatibility should still be checked against the exact third-party or Hikvision equipment being connected.

USB Interface

One USB interface is specified.

The USB interface supports applicable device-management functions according to the terminal's firmware and configuration.

RJ45 Ethernet Network Connection

The terminal includes one RJ45 10/100M self-adaptive Ethernet interface.

This provides wired network connectivity for compatible access-control management, configuration and integration applications.

Built-In 2.4GHz Wi-Fi

The DS-K1T341CMW also supports wireless network connectivity.

The current manufacturer specification lists 2.4GHz Wi-Fi using IEEE 802.11b/g/n.

No 5GHz Wi-Fi support is specified for this model, so it should not be advertised as a dual-band wireless terminal.

Hik-Connect Support

Hik-Connect is supported by the DS-K1T341CMW.

Available remote functions depend on the system design, firmware, network configuration and current Hik-Connect capabilities.

Hikvision also specifies two-way audio capability with compatible client software, door stations, indoor stations and main stations.

Noise Suppression and Echo Cancellation

The terminal supports audio processing including noise suppression and echo cancellation.

These functions are designed to improve supported voice communication when the terminal is being used as part of a compatible intercom or access-control system.

QR-Code Recognition

QR-code recognition is listed as a supported function on the current DS-K1T341CMW specification.

The exact QR workflow and credential-management method depend on the associated system and software configuration.

12V DC to 24V DC Power

The terminal accepts a power supply between 12V DC and 24V DC at 2A according to Hikvision's current datasheet.

Maximum power consumption is specified at 10W or less.

No PoE input is listed in the current DS-K1T341CMW datasheet, so the terminal should not be advertised as a PoE-powered access terminal.

IP65 Protection

The DS-K1T341CMW carries an IP65 protection rating.

This provides protection against dust ingress and water jets when the product is installed correctly.

IP65 should not be interpreted as meaning the unit can be submerged or installed without suitable consideration for cable entries, mounting surfaces and the overall installation environment.

Wide Operating Temperature Range

Hikvision specifies an operating-temperature range from -30°C to +60°C.

This supports use in a wide range of controlled access environments when the terminal is installed in accordance with the manufacturer's requirements.

Compact Wall-Mounted Format

The official Hikvision dimensional drawing gives overall dimensions of approximately 83.2mm wide, 172.5mm high and 22.7mm deep.

Its compact vertical form makes the terminal suitable for installation beside controlled doors where a larger access-control panel would be impractical.

Hikvision DS-K1T341CMW Product Facts

Important Variant Information

The DS-K1T341 family contains several different variants. This listing is specifically for DS-K1T341CMW.

The CMW version supports face recognition, M1 card authentication and Wi-Fi. It does not include the fingerprint reader fitted to the separate DS-K1T341CMFW model.

Specifications from CM, CMF or CMFW versions should therefore not be copied into this page unless they are independently confirmed for DS-K1T341CMW.
