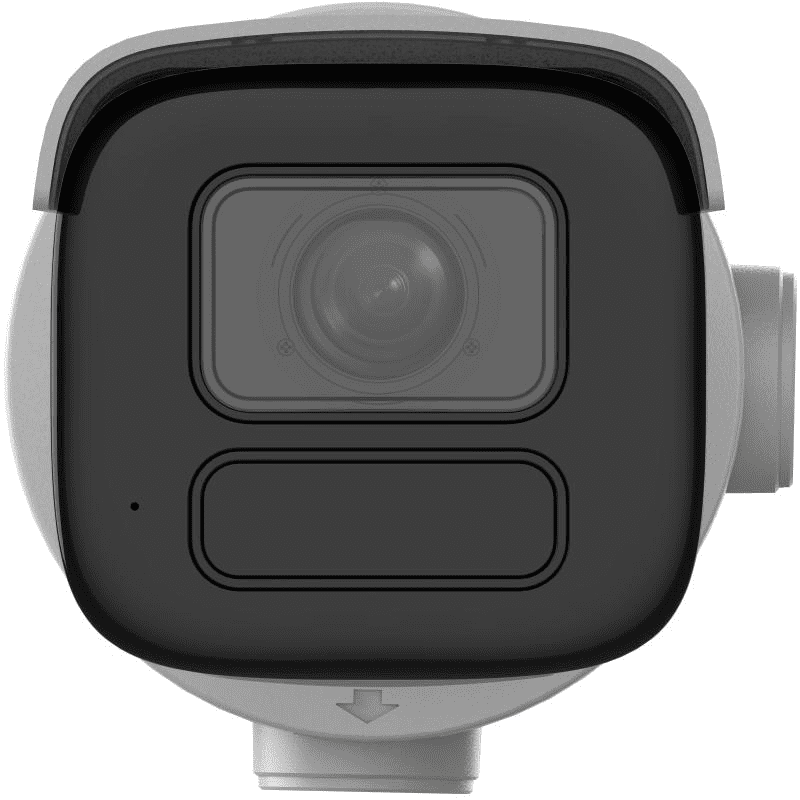

Product Overview

The Hikvision DS-2CD3646G2T-IZSY(H) is a professional 4MP AcuSense motorised varifocal bullet network camera designed for demanding commercial, industrial and higher-specification CCTV installations.

It combines a 1/3-inch progressive scan CMOS sensor with Powered-by-DarkFighter low-light imaging, 120dB True Wide Dynamic Range, deep-learning human and vehicle classification and a remotely adjustable motorised varifocal lens.

The Y version adds NEMA 4X anti-corrosion protection. Hikvision specifically classifies this level as moderate anti-corrosion protection, making it suitable for areas with greater environmental exposure than a standard camera while stopping short of the manufacturer's specialist top-level anti-corrosion category.

The DS-2CD3646G2T-IZSY(H) is officially produced with either a 2.7-13.5mm lens or a longer-range 7-35mm lens. The exact lens version must be confirmed from the complete manufacturer part number of the camera being supplied.

Key Features

• 4MP resolution up to 2688 × 1520
• 1/3-inch progressive scan CMOS sensor
• Powered-by-DarkFighter low-light technology
• Motorised varifocal lens
• 2.7-13.5mm and 7-35mm versions available
• Auto, semi-auto and manual focus
• Automatic iris
• Up to 60m IR with 2.7-13.5mm version
• Up to 80m IR with 7-35mm version
• Smart Supplement Light
• 120dB True Wide Dynamic Range
• Hikvision AcuSense technology
• Human and vehicle target classification
• Line crossing detection
• Intrusion detection
• Region entrance detection
• Region exiting detection
• Face capture
• People counting
• Scene change detection
• Defocus detection
• Audio exception detection
• Unattended baggage detection
• Object removal detection
• H.265+ video compression
• Up to four video streams under supported configurations
• microSD storage up to 512GB
• NAS and ANR network recording support
• External audio input and output
• 2 alarm inputs and 2 alarm outputs
• 12V DC auxiliary power output up to 100mA
• HEOP embedded open platform support
• 10/100Mbps Ethernet
• 12V DC or IEEE 802.3at Class 4 PoE+
• IP67 weather protection
• IK10 impact resistance
• NEMA 4X moderate anti-corrosion protection on Y model

4MP High-Definition Network Video

The DS-2CD3646G2T-IZSY(H) uses a 1/3-inch progressive scan CMOS sensor and records at a maximum resolution of 2688 × 1520, commonly described as 4MP.

For UK 50Hz operation, the main stream supports up to 25 frames per second at 2688 × 1520, 1920 × 1080 and 1280 × 720.

The 4MP resolution provides a useful balance between image detail, network bandwidth and storage requirements for professional CCTV systems.

Powered-by-DarkFighter Low-Light Imaging

Powered-by-DarkFighter technology helps maintain usable surveillance imagery when ambient light levels are low.

Hikvision's current family specification lists minimum colour illumination from approximately 0.003 lux and black-and-white sensitivity down to approximately 0.001 lux under its stated laboratory conditions, with 0 lux operation available when infrared illumination is active.

Low-light lux values are laboratory reference measurements rather than guaranteed image-quality results in every real-world environment.

Two Motorised Varifocal Lens Options

The DS-2CD3646G2T-IZSY(H) is available with two substantially different motorised lens options.

The 2.7-13.5mm version is designed for applications requiring a flexible combination of wide-angle coverage and moderate telephoto adjustment. It provides approximately 107.6° horizontal coverage at the widest setting, narrowing to approximately 32.9° at maximum telephoto.

The 7-35mm version is considerably more telephoto-oriented. Its horizontal field of view ranges from approximately 28.7° to 10.5°, making it better suited to more focused and longer-distance viewing.

Both lenses are motorised and support automatic, semi-automatic and manual focus adjustment. They are varifocal lenses rather than PTZ systems: the camera's focal length can be adjusted, but the camera does not remotely pan or tilt around the installation.

Up to 60m or 80m Infrared Illumination

The maximum infrared range depends on the exact lens version.

The 2.7-13.5mm model provides manufacturer-rated infrared illumination up to 60 metres, while the 7-35mm version provides infrared illumination up to 80 metres.

Smart Supplement Light helps manage infrared intensity according to the monitored scene.

The 60m and 80m figures describe rated IR illumination distances. They do not guarantee facial, number-plate or evidential identification at those distances.

120dB True Wide Dynamic Range

The current exact DS-2CD3646G2T-IZSY(H) documentation specifies 120dB True WDR.

Wide Dynamic Range helps preserve useful detail where very bright and very dark areas exist within the same image, such as entrances, loading bays and areas facing strong daylight.

Additional image processing includes Backlight Compensation, Highlight Compensation, 3D Digital Noise Reduction and defog.

Hikvision AcuSense Human and Vehicle Classification

AcuSense deep-learning technology allows supported motion and perimeter alarms to focus on specified human and vehicle target types.

This can reduce the number of unwanted alerts caused by unrelated movement such as environmental activity, although no video-analytics system should be described as completely eliminating false alarms.

Perimeter Protection

Supported intelligent perimeter functions include line crossing, intrusion, region entrance and region exiting detection.

These functions can trigger alarms according to specified human and vehicle target types when correctly configured.

Face Capture

The camera supports face capture as a dedicated deep-learning function.

Face capture allows suitable face images to be captured for use within compatible surveillance workflows. It should not be confused with independent named-person facial recognition.

People Counting

People-counting functionality is also listed for the exact camera platform.

This can be useful for suitable entrance, retail and occupancy-analysis applications when the camera is positioned and configured appropriately.

People-counting results depend on installation geometry, target visibility and configuration and should not be presented as guaranteed 100% accurate counts.

Additional Smart Events

Other supported intelligent events include scene change detection, audio exception detection, defocus detection, unattended baggage detection and object removal detection.

These functions provide additional monitoring flexibility in commercial and professional security installations.

H.265+ Efficient Compression

The main video stream supports H.265+, H.265, H.264+ and H.264 compression.

H.265+ can help reduce storage and bandwidth requirements compared with less efficient configurations, depending on scene activity, frame rate, resolution and recording settings.

Multiple Video Streams

The camera supports multiple simultaneous video-stream profiles for recording, remote viewing and compatible analytics workflows.

The manufacturer specification includes main, sub, third and fourth stream capabilities, although available combinations can vary according to resolution and frame-rate configuration.

microSD Storage up to 512GB

The built-in memory-card slot supports compatible microSD, microSDHC and microSDXC cards with capacities up to 512GB.

This is a supported removable-card capacity. It does not mean that the camera contains 512GB of built-in recording storage or that a memory card is included.

With supported Hikvision memory cards, memory-card encryption and health monitoring are also available.

NAS and ANR Recording

The camera supports NAS storage using NFS or SMB/CIFS together with Automatic Network Replenishment in compatible Hikvision recording configurations.

It can also be recorded by a suitably specified Hikvision NVR or compatible video-management platform.

External Audio Input and Output

One external line-level audio input and one external line-level audio output are provided.

The exact specification does not list a built-in microphone or built-in speaker, so those features should not be advertised on this product.

Suitable external audio equipment is required when audio recording or output is needed.

Two Alarm Inputs and Two Alarm Outputs

The DS-2CD3646G2T-IZSY(H) provides two alarm inputs and two alarm outputs.

Hikvision specifies the alarm outputs at a maximum of 24V DC or 24V AC at 1A.

This gives professional installers flexibility to integrate compatible sensors and external alarm equipment.

12V Auxiliary Power Output

A separate 12V DC auxiliary output rated up to 100mA is also available.

This is a low-current auxiliary output and must not be described as a general high-power supply for arbitrary external equipment.

HEOP Open Platform

The camera supports Hikvision Embedded Open Platform, allowing supported third-party applications to be imported where compatible.

Hikvision lists 1.5 TOPS of computing capability together with dedicated platform resources including 60MB system memory, 400MB Smart RAM and 2GB eMMC.

The 2GB eMMC figure is an internal platform resource for HEOP functionality. It should not be advertised as customer-accessible CCTV recording storage.

PoE+ and 12V DC Power

The camera can be powered using either 12V DC or IEEE 802.3at Class 4 PoE+.

Hikvision specifies maximum power consumption of approximately 13W using 12V DC and approximately 15W through PoE+.

This model should therefore not be incorrectly described as standard 802.3af-only PoE.

10/100Mbps Ethernet

One self-adaptive 10/100Mbps RJ45 Ethernet interface is provided.

This is Fast Ethernet rather than Gigabit Ethernet. A 1000Mbps network port should not be claimed.

IP67 Weather Protection

The camera carries an IP67 environmental protection rating, providing strong protection against dust and water ingress under the applicable test conditions when correctly installed.

IK10 Impact Resistance

IK10 impact resistance provides additional physical protection for installations where the camera may be exposed to accidental or deliberate impact.

NEMA 4X Moderate Anti-Corrosion Protection

The Y version adds NEMA 4X anti-corrosion protection according to NEMA 250.

Hikvision categorises this specific Y model as providing moderate anti-corrosion protection. The manufacturer's example environments include coastal areas approximately 2 kilometres from the coastline and areas affected by acid rain.

This distinction matters. The camera should not be marketed as Hikvision's top-level anti-corrosion product for immediate coastlines, docks or severe chemical-plant environments.

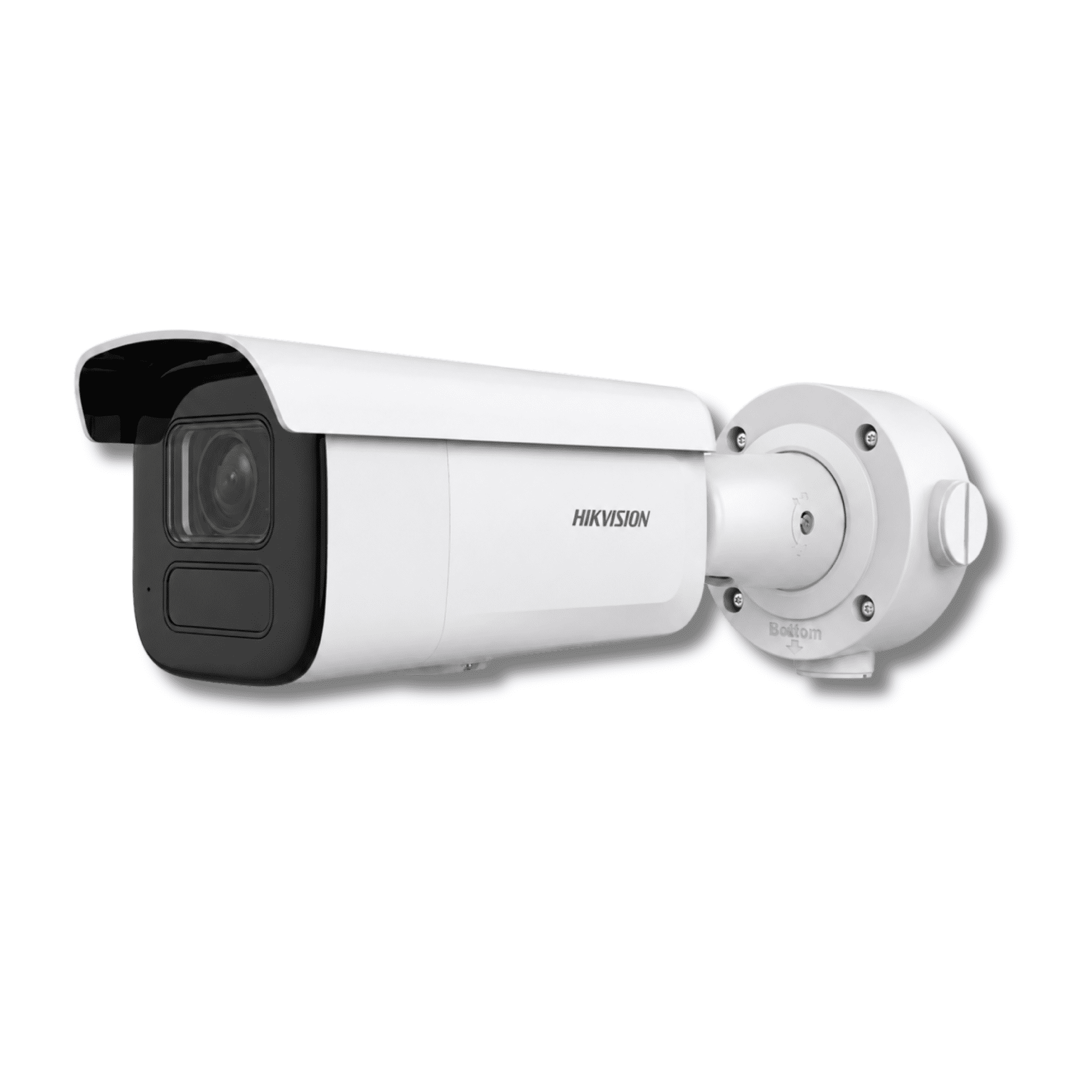

Aluminium Alloy Bullet Housing

The camera uses an aluminium-alloy body measuring approximately Ø105 × 332.8mm.

Camera weight is approximately 1.33kg, while Hikvision lists packaged weight at approximately 2.176kg.

The specified operating and storage range is -30°C to +60°C with humidity of 95% or less under non-condensing conditions.

Technical Specifications

Recommended Applications

The Hikvision DS-2CD3646G2T-IZSY(H) is well suited to commercial buildings, warehouses, industrial estates, car parks, factories, schools, transport sites, loading areas, larger residential developments and other professional surveillance environments.

The 2.7-13.5mm version is particularly useful where a flexible wide-to-medium field of view is required, while the 7-35mm version provides significantly more focused long-range coverage.

The Y model's NEMA 4X moderate anti-corrosion protection also makes it particularly useful where environmental exposure is more demanding than a conventional IP67 camera installation, while still remaining distinct from Hikvision's specialist top-level anti-corrosion range.
