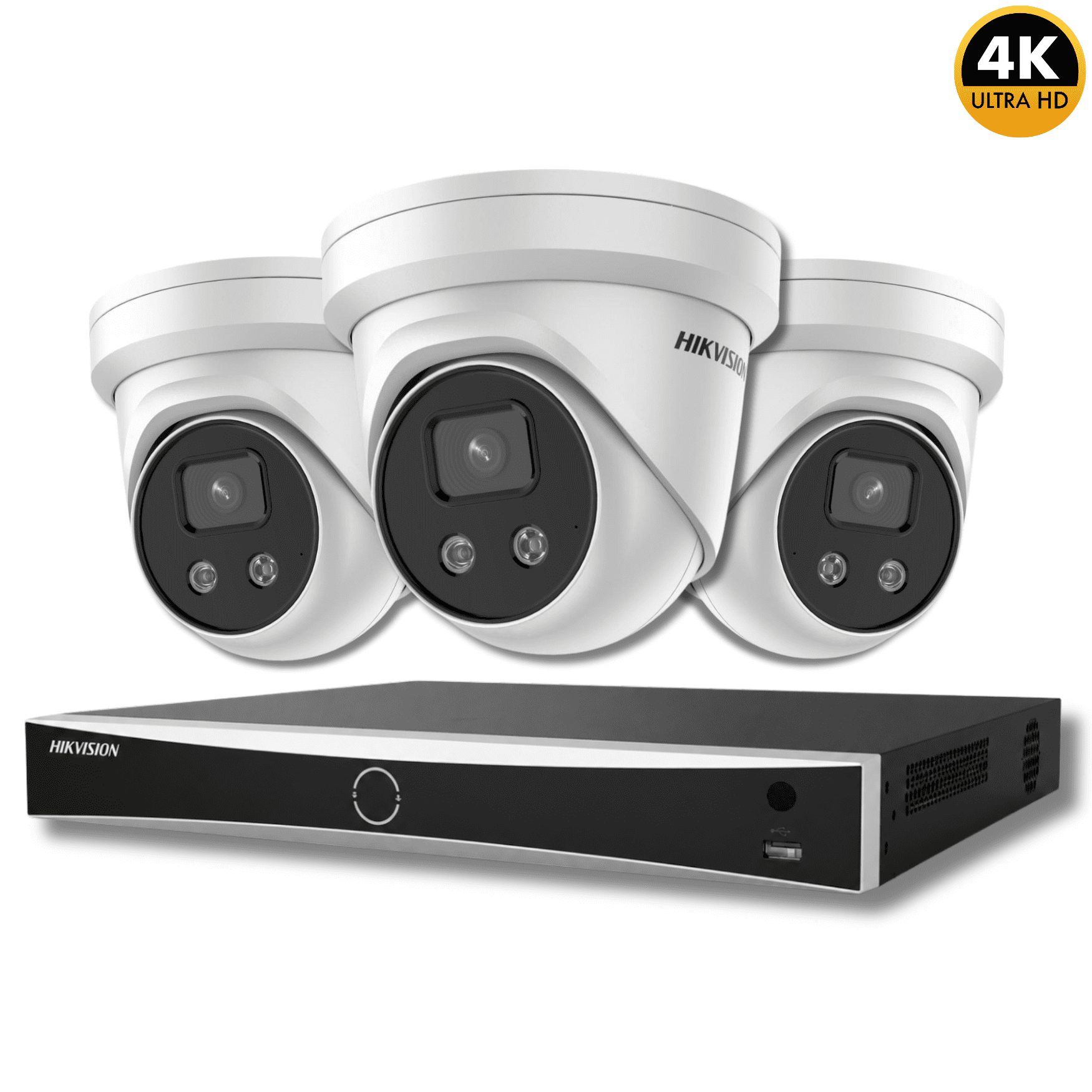

Hikvision 3 Camera 8MP 2.8mm AcuSense IP CCTV Kit – DS-2CD2386G2-IU + DS-7608NXI-K2/8P

This Hikvision CCTV kit includes three DS-2CD2386G2-IU 8MP 2.8mm AcuSense Powered-by-DarkFighter turret network cameras and one DS-7608NXI-K2/8P eight-channel PoE NVR. The three included cameras occupy three of the recorder's eight available IP camera channels, leaving five channels available for compatible future expansion. Designed for homes, shops, offices, warehouses and other residential or commercial properties, the system combines detailed 4K-resolution IP surveillance, intelligent human and vehicle classification, built-in camera microphones, infrared night monitoring and convenient PoE connectivity.

The standard kit contains the three cameras and NVR only. A surveillance hard drive, PoE network cables, camera junction boxes, monitor and other installation accessories are optional and are not included unless separately selected.

What Is Included in This CCTV Kit?

Three 8MP Cameras for Detailed Property Coverage

This three-camera configuration provides more coverage than a basic two-camera system while retaining substantial room for future expansion. Three cameras can be positioned around separate priority areas such as a front entrance, rear access point and driveway, or across different internal areas in a shop, office, warehouse or other commercial property.

Each DS-2CD2386G2-IU provides a maximum resolution of 3840 x 2160, delivering 8MP imaging for detailed CCTV surveillance. The higher pixel resolution helps retain useful scene detail across entrances, pathways, customer areas, storage spaces and building approaches.

The cameras support H.265+, H.265, H.264+ and H.264 video compression. Efficient H.265+ compression can help reduce network and storage requirements when compared with less efficient recording configurations, although actual requirements depend on the final camera and recording settings.

2.8mm Wide-Angle Camera Lens

All three cameras use the 2.8mm fixed-lens version of the DS-2CD2386G2-IU. This lens provides approximately 111 degrees horizontal, 59 degrees vertical and 131 degrees diagonal field of view.

The wide viewing angle is particularly useful where broad scene coverage is required. Typical positions can include entrances, driveways, reception areas, retail floors, offices, workshops and storage areas.

A 2.8mm lens covers a wider scene than a narrower fixed lens, but objects positioned farther away naturally occupy fewer pixels in the image. Correct camera positioning therefore remains important where identification detail is a priority.

Powered-by-DarkFighter Low-Light Performance

The DS-2CD2386G2-IU uses Hikvision Powered-by-DarkFighter technology to improve image performance in challenging low-light environments. This can help retain useful detail as natural or artificial lighting levels decrease.

The cameras also include infrared illumination with a specified range of up to 30 metres. When the available visible light becomes insufficient, infrared night operation allows the cameras to continue monitoring the scene.

This camera model is not a ColorVu camera. It should therefore be described as using Powered-by-DarkFighter low-light imaging together with infrared night monitoring rather than continuous full-colour night surveillance.

AcuSense Human and Vehicle Classification

Hikvision AcuSense technology uses deep-learning based analysis to help distinguish human and vehicle targets for supported intelligent events. This can make event-based surveillance more useful by helping the system focus on relevant human or vehicle activity.

The DS-2CD2386G2-IU supports intelligent functions including line crossing detection, intrusion detection, region entrance detection and region exiting detection with human and vehicle target classification.

Camera position, target distance, scene conditions and event configuration all affect practical detection performance, so intelligent rules should be configured for the individual property.

Built-In Microphones on All Three Cameras

Each DS-2CD2386G2-IU in this kit includes a built-in microphone. When audio recording is correctly configured, compatible audio can therefore be recorded alongside the camera video.

This may provide additional context around entrances, reception areas, customer-facing areas and other monitored locations. Customers should ensure their use of CCTV audio complies with applicable privacy and data-protection requirements.

The cameras do not contain integrated loudspeakers, so they should not be described as providing built-in two-way audio, an audible warning speaker or active deterrence.

8-Channel Hikvision PoE AcuSense NVR

The supplied DS-7608NXI-K2/8P is an eight-channel Hikvision network video recorder with eight integrated PoE camera interfaces. Compatible PoE cameras can connect directly to the recorder, simplifying both network connectivity and camera power distribution.

Three of the eight recorder channels are used by this kit, leaving five channels available for future compatible cameras. This gives the customer meaningful expansion capacity without moving immediately to a larger recorder.

The recorder supports up to 80 Mbps incoming bandwidth. Each DS-2CD2386G2-IU camera supports a configurable video bitrate up to 16 Mbps, giving a theoretical maximum of approximately 48 Mbps across the three supplied cameras. This remains within the NVR's 80 Mbps incoming-bandwidth capacity.

PoE Power Capacity

Each DS-2CD2386G2-IU supports IEEE 802.3af PoE and has a maximum specified PoE consumption of approximately 6.8W. Three cameras therefore represent a theoretical maximum camera load of approximately 20.4W.

The DS-7608NXI-K2/8P provides a total PoE power budget of up to 80W, meaning this three-camera configuration remains comfortably within the available PoE capacity.

Suitable PoE-compatible Ethernet cabling is required between each camera and the NVR. Camera network cables are optional and are not included in the standard kit.

Optional CCTV Recording Storage

A hard drive is not included as standard. A compatible surveillance HDD can be selected separately where central recording and playback through the NVR are required.

The DS-7608NXI-K2/8P provides two SATA interfaces, allowing customers to choose storage capacity according to their recording and retention requirements.

Recording duration depends on several factors including the number of cameras, recording resolution, bitrate, frame rate, compression mode, recording schedule and scene activity. Three 8MP cameras will naturally require more storage than an equivalent one-camera or two-camera configuration using the same recording settings.

A fixed number of recording days should therefore not be promised without carrying out a storage calculation using the intended settings.

Local and Remote Viewing

The NVR provides HDMI and VGA display outputs for connection to a compatible monitor. A monitor is not included as standard but can be added separately where customers require dedicated local live viewing, playback and recorder configuration.

Remote viewing can also be configured through compatible Hikvision software and services. Remote access requires suitable internet connectivity, account setup, network configuration and appropriate security settings.

Five Spare Channels for Future Expansion

This three-camera kit occupies three of the eight available recorder channels, leaving five channels free. This makes the system suitable for customers who currently need three surveillance points but expect the property or security requirements to expand later.

For example, a residential installation might begin with cameras covering the driveway, front entrance and rear garden before later adding cameras to a side passage, garage or other area. A commercial installation could begin with entrance, customer and stock-room coverage and expand later.

Additional cameras must remain compatible with the NVR and within its available bandwidth, PoE power, decoding and storage capabilities. Five spare channels should therefore not be interpreted as automatic compatibility with any five IP cameras.

Installation and Optional Junction Boxes

The standard kit contains the three cameras and NVR only. Network cables, mounting accessories and other installation materials should be selected according to the individual property.

The Hikvision DS-1280ZJ-PT6 is a compatible junction-box option for the DS-2CD2386G2-IU. Junction boxes are optional and are not included as standard.

Installation may additionally require suitable wall or ceiling fixings, conduit, weatherproof cable routing, drilling equipment, network equipment, additional cable length or other site-specific materials.

Suitable Applications

• Front, rear and side residential property coverage
• Driveways, entrances and gardens
• Retail shops and customer areas
• Offices and reception areas
• Stock rooms and storage areas
• Warehouses and workshops
• Commercial entrances and exits
• Small business premises
• Properties requiring future CCTV expansion

Important Information Before Purchase

• This kit includes three DS-2CD2386G2-IU 2.8mm cameras and one DS-7608NXI-K2/8P NVR.
• A surveillance hard drive is not included as standard.
• PoE Ethernet network cables are not included as standard.
• Camera junction boxes or brackets are not included as standard.
• A monitor is not included as standard.
• The cameras use Powered-by-DarkFighter technology and infrared rather than ColorVu.
• The cameras include built-in microphones but no integrated speakers.
• Five NVR channels remain available, subject to bandwidth, PoE, decoding and storage limits.

Hikvision DS-2CD2386G2-IU 2.8mm Camera Specifications

Hikvision DS-7608NXI-K2/8P NVR Specifications

Optional Accessories

UK-Wide CCTV Kit Supply

CCTV Direct Online supplies Hikvision CCTV kits throughout the United Kingdom, covering England, Scotland, Wales and Northern Ireland. This three-camera IP CCTV system can be ordered for residential and commercial security projects in areas including Birmingham, Manchester, Liverpool, Leeds, Sheffield, Newcastle, Bristol, Cardiff, Glasgow, Belfast, Bolton, Stockport, Wakefield, Derby, Portsmouth and Plymouth.

These locations are representative examples rather than limits on supply. CCTV equipment is supplied UK-wide to towns, cities, villages, counties and regions throughout the country, including North West England, Yorkshire, North East England, the Midlands, South West England, Wales, Scotland and wider Northern Ireland.

Frequently Asked Questions

How many cameras are included in this Hikvision CCTV kit?

This kit includes 3 Hikvision DS-2CD2386G2-IU 8MP 2.8mm turret cameras.

Which NVR is included?

This kit includes 1 Hikvision DS-7608NXI-K2/8P 8-channel PoE AcuSense NVR.

How many recorder channels does this three-camera kit use?

This kit uses 3 of the NVR's 8 available camera channels.

How many additional cameras can be added?

The recorder has 5 unused channels available for compatible future cameras, subject to bandwidth, PoE, decoding and storage limits.

What lens is fitted to the cameras?

This kit uses the 2.8mm fixed-lens DS-2CD2386G2-IU with approximately 111 degrees horizontal field of view.

Does this kit include a hard drive?

No. A surveillance hard drive is optional and is not included as standard.

Do I need a hard drive?

A compatible surveillance HDD should be added if central recordings are to be stored locally on the NVR.

Are network cables included?

No. PoE-compatible Ethernet cables are optional and should be selected according to the required installation distances.

Are camera junction boxes included?

No. Junction boxes are optional. The Hikvision DS-1280ZJ-PT6 is a compatible option for these cameras.

Is a monitor included?

No. A compatible monitor is optional and can be connected separately to the NVR using HDMI or VGA.

Do the cameras record audio?

Yes. Each DS-2CD2386G2-IU includes a built-in microphone for compatible audio recording.

Are these Hikvision ColorVu cameras?

No. These cameras use Powered-by-DarkFighter low-light technology with infrared illumination rather than ColorVu.

How far does the infrared night illumination reach?

The maximum specified infrared illumination range is up to 30m, although practical performance depends on camera position, scene conditions and surrounding surfaces.

Does this CCTV kit use PoE?

Yes. Each camera supports PoE and can receive network data and electrical power through a suitable Ethernet cable connected to the NVR's PoE interfaces.
